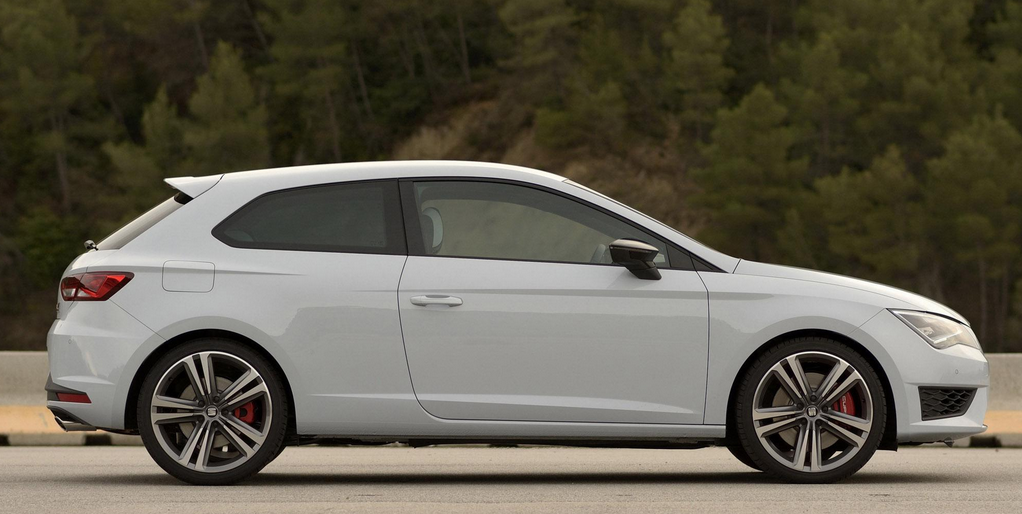

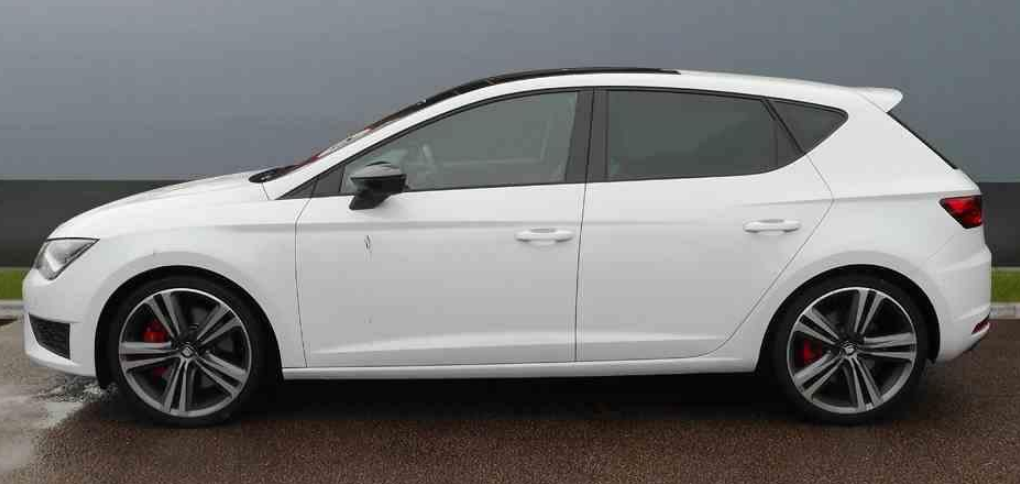

OBD11 MODS FOR SEAT LEON MK3

Covering MY15 - MY16 - MY17 - MY18 - MY19



Mechanical

Service

Acoustic and Alarm warnings

Heating and Air Conditioning

Multimedia

Mirrors

Wiper

Window/Roof/Doors

Driving Assistance

FIS Frame Information

Menu / Screens/ Options

Parking Systems

Brakes

Change of Bulbs and Currents

Coming/Leaving home

Emergency

Interior Lights

Exterior Lights

Retrofits



MECHANICAL

Charge / Bleed brake system
* Applicable to all models *
With this modification you can charge and bleed the brakes without having to step on the pedal to charge.
1 - Module 03 - Brake electronics - Code (40168/20103)
2 - Basic settings
3 - Charge / bleed brake system - (Select the desired option)

Bleed the brake
* Applicable to all models *
With this modification you can bleed the brakes without having to step on the pedal to load.
1 - Module 03 - Brake electronics - Code (40168/20103)
2 - Basic settings
3 - Bleed the brake - (Select the desired option)

 Adjust values ​​by battery change
* Applicable to all models *
If you change the battery, this mod will be very useful. Adjust the values ​​to the ones on the battery sticker and accept the changes.
1 - Module 19 - Diagnostic interface for data bus - Code (20103)
2 - Adaptation
3 - Battery voltage - (Change value to the desired one) Check
the correct values ​​on the battery sticker. AH Manufacturer, Serial No. and if it is Dry or Wet.
[div][a name="two"]





Service

 Reset Duty Cycles
* Applicable to all models *
With this mod you can reset the maintenance service notice.
1 - Module 17 - Instrument panel - Code (25327)
2 - Adaptations
3 - PIM: restart prolog.interv.mant - (Change value to Reset)

 Change revision notice by KM
* Applicable to all models *
With this mod you can reset the maintenance service notice for kilometers.
1 - Module 17 - Instrument cluster - Code (25327)
2 - Adaptation
3 - FIXED: max. until next rev. depending on the kil. - (Change value to the desired one - By default 30000)
4 - FIXED: reset value. Next inspection Depending on the mileage - (Change value to the desired one - By default 30000)
5 - PIM: maximum value of KM-kilometer performance / revision - (Change value to the desired one - By default 30000)
6 - PIM: minimum value of km-kilometer performance / revision - (Change value to the desired one - By default 15000)
7 - SIA: maximum value of journey to service - (Change value to the desired one - By default 15000)

You can do it Also without the device:
1 - Put the emergency flashers.
2 - Hold down the button for the trip meter and turn on the car key.
3 - Follow the FIS instructions and press the end button to accept.

 Change revision notice by days
* Applicable to all models *
With this mod you can reset the maintenance service notice by days.
1 - Module 17 - Dashboard - Code (25327)
2 - Adaptation
3 - FIXED: Max. until next rev. Depending on time - (Change value to desired - Default 730 d)
4 - FIXED: reset value next inspection based on time - (Change value to desired - Default 365 d)
5 - PIM: maximum value of the time elapsed between revisions - (Change value to the desired one - By default 730 d)
6 - PIM: minimum value of the time elapsed between revisions - (Change value to the desired one - By default 365 d)
7 - SIA: value plus time until service - (Change value to the desired one - By default 365 d)

You can also do it without the device:
1 - Put the emergency flashers.
2 - Hold down the button for the trip meter and turn on the car key.
3 - Follow the FIS instructions and press the end button to accept.

 Reset oil change notice
* Applicable to all models *
With this mod you can reset the oil change notice.
1 - Module 17 - Instrument panel - Code (25327)
2 - Adaptation
3 - PIM: oil quality - (Change value to Good oil quality)

You can also do it without the device:
1 - Hold down the button of the partial of the odometer and gives the ignition on the car key.
2 - Follow the FIS instructions and press the end button to accept.

 Deactivate service warning
* Applicable to all models *
1 - Module 17 - Instrument cluster - Code (25327)
2 - Adaptation
3 - Daily service warning - (Change value to Not activated)

 Reset tire settings
* Applicable to all models *

https://www.youtube.com/watch?v=DEwcFFq6yvc

If you have been with your car for some time and you have been adjusting the pressures and want to adjust them to the factory values, you can do so by applying this modification.

1 - Module 03 - Brake electronics - Code (40168/20103)

2 - Basic settings

3 - Reset. Tire check indicator factory settings

4 - Select the desired option - Not Enabled (Default)  - Enabled



 Enable power steering with engine stopped
* Applicable to all models *
It is a temporary modification until you remove and replace the contact.
It is very useful to be able to move the wheels without having the car started at times when we are carrying out a repair, for example, if we run out of battery and the car does not start, to be able to push the car and be able to move the direction.
1 - Module 44 - Power steering - Code (19249)
2 - Adaptation
3 - Activate power steering with engine stopped - (Change value to On)
[div][a name="three"]

Acoustic and Alarm Warnings

 Activate alarm in cars without serial alarm (Thanks Stewei and Javigody)
* Applicable up to MY16 *

 https://www.youtube.com/watch?v=lYN4nje1m9Q



No installation required.

Applicable to vehicles without a standard alarm, vehicles without a horn installed. It only monitors doors, hood and trunk.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Long Coding(Byte mode)

3 - Byte 12

4 - Activate Bit 0 (Anti-theft system installed / active)

5 - Adaptation

6 - Anti-theft protection

7 - DWA Alarmverzoegerung (Change value to Driver door contact thatcham)

8 - DWA Camper Modus (Change value to On)

9 - Ueberwachung Innenentriegelungshebel (Change value to On)

10 - Akustischer Alarm Signalhorn (Change value to Activated)
11 - Response signals
12 - Akustische Rueckmeldung global (Change value to On)
13 - Akustische Rueckmeldung Signalhorn (Change value to On)

OPTIONAL (Read the description in Extended Information)

1 - Long Coding(Byte mode)
2 - Byte 12
1 - Deactivate Bit 6 (Start Anti Theft Alarm Delay with mechanical (Door Lock) Opening) Note in MY15 and earlier it goes the other way around that is, you will have to activate it.
* Applicable from MY17 *
In some models from MY18 onwards it is not possible to enter Long Codingor it is all at zero. Everything can be done through Adaptation.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Theft protection
4 - DWA Alarmverzoegerung (Change value to Driver door contact thatcham)
5 - DWA Camper Modus (Change value to Activated)
6 - Ueberwachung Innenentriegelungshebel (Change value to Activated)
7 - Akustischer Alarm Signalhorn (Change value to On)
8 - Diebstahlwarnanlage (Change value to On)
9 - Response signals
10 - Akustische Rueckmeldung global (Change value to On)
11 - Akustische Rueckmeldung Signalhorn (Change value to Enabled)
OPTIONAL (Read the description in Extended Information)
12 - Schliesszylinder in Richtung Oeffnen aktiv (Thatcham inaktiv) (Change value to Enabled)
Step 8 in some cases appears in English as (Alarm system or Anti Theft alarm system)
±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±±
If your horn does not sound when the alarm is activated, make the Active Horn mod without contact .
Note that once we get out of the vehicle, the alarm is activated after a few seconds, so if we want to test it we would have to wait about 30 seconds and then open the door from the inside (with the window open, for example).
We close the car while inside, and after about 30 seconds open the door and the alarm goes off, which goes off either by giving the contact or with the remote control giving it to open.
If we open the door using the sprat on the lock, we have 30 seconds to make contact before it starts to ring. Take this into account when you change the battery on the remote and you are reprogramming it in the lock.

 Extended information:
Up to MY16 in extended coding, in Byte 12 we will see that bit 6 is activated.
This bit corresponds to Start Anti Theft Alarm Delay with mechanical (Door Lock) Opening
From MY17 that bit goes to Adaptation with the function Schliesszylinder in Richtung Oeffnen aktiv (Thatcham inaktiv) That
is, having it activated it applies a delay of about 15 seconds for the Triggering of the alarm when opening from the cylinder if we do not make contact or press a button on the remote.
If we deactivate it, this function will stop working, that is, we can open from the cylinder without activating the alarm, keeping the rest of the functionalities operational.
Advantages: If you run out of battery, if you carry a key without reserve buttons and open from the cylinder. (When I go to the beach, I take the reserve one with me)
Disadvantages: If they force the lock, they burst the cylinder and activate the opening from the cylinder cables, simulating the key opening, the alarm will not go off.
Another peculiarity:
With the traditional mod, when opening from the bowler, it only opens the driver's door.
With bit 6 deactivated, when opening from the cylinder, it opens all the doors.
Let each one value and perform the mod as they see fit.

 Active non-contact horn
* Applicable up to MY16 *



 https://www.youtube.com/watch?v=636k2BJD_NY



With this mod the horn works even if you do not put the contact. Be careful, it is important to have it like this, a situation may arise in which you need it and you have not put the key.

In many cases in which the alarm mod does not sound to you, it is because you do not have this mod activated.

1 - Module 16 - Steering column electronics

2 - Long Coding(Bytes Mode)

3 - Byte 0 - (Disable Bit 7)



Other way:

1 - Long Coding(Text mode)

2 - Horn actuation - ( Change value to Always)

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation
3 - Additional functions
4 - Signalhorn ohne KL15 - Check that it is On. It usually is, but it may not and it won't work.
* Applicable from MY17 *
1 - Module 16 - Steering column electronics
2 - Long Coding(Bytes mode)
3 - Byte 0 - (Deactivate Bit 7)
Other way:
1 - Long Coding(Text mode)
2 - Drive - (Change value to Always)

1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - HW Verbau
4 - Signalhorn ohne KL15 - Check that it is Activated. It usually is, but it may not and it won't work.
* Applicable from MY19 *
In some MY19 models that do not have unit 16, it only goes through 09
1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaption
3 - HW Verbau
4 - Signalhorn ohne KL15 - (Change value to On)

 Deactivate beep when open a door with the ignition on
* Applicable to all models *



 https://www.youtube.com/watch?v=wTxQStHixqU



With this mod, the warning beep that gives when opening a door with the ignition on is deactivated.

1 - Module 17 - Instrument panel - Code (25327)

2 - Adaptation

3 – Ignition active message, actuator - (Change value to No display)



Another Way



Open Door alarm one click app.



 Activate beep when closing and opening the car + on-screen menu

 * Applicable to all models *



 https://www.youtube.com/watch?v=4spDLFXB99c



With this mod you can make a sound signal with the horn when closing, opening or in both cases. In the menu you can select whether to ring or not, but you cannot select only when opening or only when closing.

If you are only interested in one of the two options, activate in the mod only the one that interests you.



1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Response signals

4 - Akustische rueckmeldung entriegeln - (Change value to On) (It will give two beeps when opening)

5 - Akustische rueckmeldung verriegeln - (Change value to On) (Will beep when closing)

6 - Akustische rueckmeldung global - (Change value to On)
7 - Akustische rueckmeldung signalhorn - (Change value to On) (To do it through the horn)
8 - Menuesteuerung akustische rueckmeldung - (Change value to On) (On-screen menu)
9 --- - Dauer der akustischen rueckmeldung vom einfachhorn - Normal (Long) or Kurz (Short)

 Change the belt warning tone
* Applicable to all models *
With this mod, you can change the sounds emitted by the belt warning. By default it is the European warning, 2 is the American one.
1 - Module 17 - Instrument panel - Code (25327)
2 - Long Coding(Text mode)
3 - Notice for the use of the seat belt
4 - Choose between Variants 1, 2 and Off



Another way



One click app – Seat belt warning

 Deactivate seat belt warning
* Applicable to all models *



 https://www.youtube.com/watch?v=NrozLEy7fPw



With this mod, you can deactivate the acoustic and visual warning of the belts.

1 - Module 17 - Instrument panel - Code (25327)

2 - Extended coding

3 - Byte 1 - (Deactivate Bit 1)

Other way:

1 – Adaptation

2 - Deactivate belt warning - (Change value to Yes)



 Deactivate or change Lane Assist sound

 * Applicable up to MY16 *

1 - A5 Module - Driver assistance system front sensors - Code (20103)

2 – Adaptation

3 - Hands off Gong - (Change value to desired - Gong Typ 2 - Gong Typ 1 - Not activated)

[div][a name="four"]





Heating and Air Conditioning



 Temperature setting for countries warm
* Applicable to all models *



 https://www.youtube.com/watch?v=j7YMgA1vMqE



With this mod you get 30% more cold in the air conditioner

1 - Module 08 - Air conditioning / heating electronics

2 - Long Coding(Text mode)

3 - Temperature adjustment - (Change value to Colder setting in cooling func.)



 Show air conditioning fan speed with LEDs in AUTO mode

* Applicable to all models *



 https: //www.youtube.com/watch?v=dhOvaeEqkVw

As you may already know, in manual mode the speed led segments indicate the fan speed, however in automatic mode they are not shown. With this mod it will also show them to you in automatic mode.
1 - Module 08 - Air conditioning / heating electronics
2 - Long Coding(Byte mode)
3 - Byte 11 - (Activate Bit 6)
Other way:
1 - Module 08 - Air conditioning / heating electronics
2 - Long Coding(Mode text)
3 - Turbine indicator in operation. Automatic - (Change value to On)

 Memorize the automatic recirculation of the air conditioner at startup
* Applicable to all models *



 https://www.youtube.com/watch?v=bPBtgiQ3zxo

With this mod, by default when you put the air conditioner it is activated in recirculation mode.
1 - Module 08 - Air conditioning / heating electronics
2 - Long Coding(Text mode)
3 - Save circulating air setting in terminal 15 closed - (Change value to Save)

 Automatic activation for windscreen de-icing
* Applicable to all models *



 https://www.youtube.com/watch?v=FP4iYVWmo9I



With this mod, when starting the car if the cold conditions are adequate, the air conditioner will start blowing to the windshield by default to defrost it.

1 - Module 08 - Air conditioning

2 - Adaptations
3 – Automatic Activation of front windshield heater at MAX-Defrost - (Change value to Active)



One click app has been requested

 Automatic activation of hands heating, cold start
* Applicable to all models *
1 - Module 08 - Air conditioning / heating electronics
2 - Adaptation
3 - Heating function. Cold start hands - (Change value to On)

 Rear window heating time
* Applicable to all models *



 https://www.youtube.com/watch?v=YIli_uY5HKw



With this mod, you can change the time the rear window heating is active.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Glass heating
4 - Heckscheibenheizung zeitwert - (Change value to 240 sec.)
5 - Heated windscreen, runtime - (Change value to 240 sec.)

 Change the degrees of warning of possible danger due to ice
* Applicable to all the models *



 https://www.youtube.com/watch?v=Qxe0nSzLARw



With this mod, you can change the warning temperatures of possible danger of ice.

1 - Module 17 - Instrument panel - Code (25327)

2 - Adaptation

3 - Outside temperature

4 - P ice warning exit temperature - (Change value to the desired one - By default 6ºC)

5 - P ice warning entry temperature - (Change value to the desired one - By default 4ºC)



 Outside temperature setting. Updates on idle
* Applicable to all models *
With this mod, the outside temperature is also updated at idle. It will do it for as long as you have it marked.
1 - Module 17 - Instrument panel - Code (25327)
2 - Adaptation
3 - Outside temperature
4 - P. storage time engine off - (Change value to the desired one - By default 180 min)

 Saves the last temperature of the Heated seats
* Applicable to all models *
With this mod, the temperature set in the last instance in the seats will be saved for when you start the car again.
1 - Module 08 - Air conditioning / heating electronics
2 - Adaptation
3 - Heating level memorization. From the passenger seat - (Change value to On)
4 - Heating level memorization. From the driver's seat - (Change value to On)

 LED lighting intensity Climate control
* Applicable to all models *
With this mod, you can change the intensity of the lighting in the climate control area.
1 - Module 08 - Air conditioning / heating electronics
2 - Adaptation
3 - Dimming_characteristic_2 (Led indicator) - (Change value from Y4 to 21%)
4 - Dimming_characteristic_3 (Fan LEDs) - (Change value from Y4 to 12% )
5 - Dimming_characteristic_5 (Other LEDs) - (Change value from Y4 to 10%)

 Reset and calibrate the flaps of the air conditioning vents
* Applicable to all models *
If you notice that you get more air, different temperatures or one of the hatches does not close, it is time to perform a reset.
We can do it in two ways.
1 - Module 08 - Air conditioning / heating electronics
2 - Basic settings
3 - Adjust hatch end stops. Wait for it to finish making adjustments.

It can be done manually very easily.
With ignition on.
We press without releasing the weather button that the air comes out towards the face (the third from the left) and the A / C button.
We do not release until the LEDs blink.
Wait for the adjustment to finish.
It will leave a specific failure when you scan again because the hatches, before finding their calibration points, are decalibrated to make the calibration itself and the failure will come out. We delete it and matter resolved
[div][a name="five"]



Multimedia

 Activate / Deactivate CD / DVD ejection
* Applicable to all models *



 https://www.youtube.com/watch?v=62uRj6zkMME



With this mod you can unlock or block the CD / DVD ejection button

1 - Module 5F - Information electronics 1 - Code (20103)

2 - Adaptation

3 - CD extraction key - (Change value to Unlocked)



 Activate AUX IN (USB + AUDIO MODULE)
* Applicable to all models *



 https://www.youtube.com/watch?v=t_daep3tiSU



With this mod you can activate or deactivate the AUX input (Jack Plug next to the USB)

1 - Module 5F - Electronics information 1 - Code (20103)

2 - Long Coding(Text mode)

3 - Byte 8 AUX-IN - (Change value to On)



 Activate the AMI (Mitsumi)

* Applicable to all models *



With this mod you can activate or deactivate the AMI entrance (Mitsumi that goes in the glove compartment). If you activate it you have to deactivate the AUX In and vice versa.



1 - Module 5F - Information electronics 1 - Code (20103)

2 - Long Coding(Text mode)

3 - Byte 8 AMI - (Change value to On - By default Off)
Logically this mod is to activate the retrofit of adding the Mitsumi connection as the 2014/15 models had.

 Activate VIM (Video in Motion)
* Applicable to all models *



 https://www.youtube.com/watch?v=GnZktf4jlgM



With this mod you will be able to deactivate the lock to see video in motion in its native form. For those connecting via Mitsumi and HD built-in units that can play direct video.

1 - Applications

2 - Video in motion

3 - Change the value. Lock the screen from 200 KM / h. Apply the free patch included in the applications after unlocking the VIM so that the rest of the consumption screens, etc.


 Activate Mirrorlink in motion)
* Applicable to all models *
With this mod you can deactivate the lock to view video in motion through the Mirrorlink function.
1 - Applications
2 - Mirrorlink in motion
3 - Change the value.
Lock the screen from 200 KM / h.
Apply the free patch included in the applications after unlocking the VIM so that the rest of the consumption screens work correctly, etc.

 Adjustment of the microphone sensitivity
* Applicable to all models *
If you consider that your microphone does not catch your voice well, you can make it more responsive by doing this mod.
1 - Module 5F - Information electronics 1 - Code (20103)
2 - Adaptation
3 - Microphone sensitivity - (Change value to the desired one - By default 0 db)

 Add external sources
* Applicable to all models *



 https://www.youtube.com/watch?v=qD-ChDEsjs0



With this mod you can add various USB

1 - Module 5F - Information electronics 1 - Code (20103)

2 - Adaptation

3 - Interface for external media, activation

4 - Select one of the four options: (Connection 1, 2, 3 or 4)



 Change USB input behaviour

* Applicable to all models *

With this mod you can change the behaviour of the USB, very useful if you activate Full Link in your car and change the USB

1 module - 5F module - Information electronics 1 - Code (20103)
2 - Long Coding(Text mode)
3 - Byte 19 USB - (Change value to USB-IPOD)
Some models do not incorporate a valid USB for data even with the Full Link option pre-installed without activation and these values ​​must be changed.

 Modify sound Sound Aktor
* Applicable to all models *
1 - Module A9 - Actuator for motor loudness
2 - Adaptation
3 - Lautstärke des Aktuator für Körperschal - (Change value to desired) (Value 0 = deactivated)

 Hide / Show band AM RADIO
* Applicable to all models *



 https://www.youtube.com/watch?v=qU6DbXQyD-s



Lately almost all Leons come without the active AM band. With this mod you can enjoy it.

1 - Module 5F - Information electronics 1 - Code (20103)
2 - Long Coding(Text mode)
3 - Byte 14 AM Disable - (Change value to Not Activated) (The sample)
Restart Infotainment

 Input gain regulation in FM RADIO , AM, DAB, SAT
* Applicable to all models *
With this mod you can change the antenna gain.
1 - Module 5F - Information electronics 1 - Code (20103)
2 - Adaptation
3 - Audio input amplification Management generation 2
4 - Change desired values ​​- Default -128db Increase

 volume of each source independently
* Applicable to all models *
1 - Enter engineer mode on the car screen (Make the Engineer Mode mod to leave it active)
2 - Go to Audiomgt
3 - Go to Gain
4 - Modify the values ​​of each source.
[div][a name="six"]



MIRRORS

 Lower right mirror to put reverse gear
* Applicable up to MY16 *



 https://www.youtube.com/watch?v=VCiBw_GtmWA



With this mod, when you put the reverse gear and the mirror selector in R, the right mirror lowers to the position memorized.

1 - Module 52 - Passenger door electronics

2 - Long Coding(Bytes Mode)

3 - Byte 04 - (Activate Bits 2 and 3)
4 - Module 09 - Electronic control unit - Code (31347)
5 - Adaptation
6 - Access control 2
7 - Menuesteuerung Spiegelabsenkung - (Change value to Activated)
8 - Spiegelabsenkung bei Rueckwaertsfahrt - (Change value to Activated)
* Applicable from MY17 *
1 - Module 52 - Passenger door electronics
2 - Long Coding(Bytes Mode)
3 - Byte 04 - (Activate Bits 2 and 3)
4 - Module 09 - Electronic control unit - Code (31347)
5 - Adaptation
6 - Spiegelverstellung
7 - Menuesteuerung Spiegelabsenkung - (Change value to On)
8 - Spiegelabsenkung bei Rueckwaertsfahrt - (Change value to On)

To memorize the reverse gear position, set the mirror selector to R. Engage reverse. Adjust to a position that suits you. Put the gear out of reverse and wait a few seconds.
Change the selector to 0 and the mirror should return to the normal driving position.

 Automatic mirror folding and unfolding
* Applicable up to MY16 *
With this mod, by holding down the button on the remote you can fold or unfold the mirrors when closing or opening the car.
1 - Module 42 - Driver's door electronics
2 - Long Coding(Byte mode)
3 - Byte 4 - (Activate Bit 6) (Comfort mirror folding)

1 - Module 52 - Passenger door electronics
2 - Long Coding(Byte mode)
3 - Byte 4 - (Activate Bit 6) (Comfort mirror folding)

1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Access control 2
4 - Funk Spiegelanklappung Modus - (Change value a Convenience operation via remote control key)
5 - Funk Spiegelanklappen - (Change value to On)
Press and hold the button to fold or unfold
* Applicable from MY17 *
1 - Module 42 - Driver's door electronics
2 - Long Coding( Byte mode)
3 - Byte 4 - (Activate Bit 6) (Comfort mirror folding)

1 - Module 52 - Passenger door electronics
2 - Long Coding(Byte mode)
3 - Byte 4 - (Activate Bit 6) (Comfort mirror folding)

1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Spiegelverstellung
4 - Funk spiegelanklppung modus - (Change value to Convenience operation via remote control key)
5 - Funk Spiegelanklappen - (Change value to On)
Press and hold the button to fold or unfold

 Fold and unfold with one touch

* Applicable up to MY16 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Access control 2
4 - Funk spiegelaklappung modus - (Change value to By look command via remote control key)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Spiegelverstellung
4 - Funk spiegelaklappung modus - (Change value to By look command via remote control key)

 Menu on the screen to activate mirror folding

* Applicable up to MY16 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Access control 2
4 - Menuesteuerung funk spiegel anklappen - (Change value to Activated)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Spiegelverstellung
4 -  Menuesteuerung funk spiegel anklappen - (Change value to On) Contact door

 mirror opening

* Applicable up to MY16 *
If you also want the mirrors not to open whenever you open the car with the remote and that they only do so when making contact.
2 - Adaptation
3 - Access control 2
4 - Signalisierung Spiegelanklappung - (Change value to Disabled)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Spiegelverstellung
4 - Signalisierung Spiegelanklappung - (Change value to Disabled) It

works whether we have made the closing mod with a touch, or if we have not done it.
They will be closed both with the remote and by passing your hand through the door if you have Kessy.
(Only in vehicles whose door units "La 42 y la 52" whose Software Version is: 0032. In previous ones it is necessary to update)
Depending on the door control units they may or may not work.
The 392e, 393e, if they work and the 592e and 593e are the last to come out as of today.
[div][a name="seven"]



WIPER

After performing any of these mods, if you notice that the behaviour does not change, you have to go to Factory Settings and reset in the infotainment.

 Permanently deactivate the rear wiper comfort system
* Applicable to all models *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Rear wiper
4 - Konfortwischen heck - (Change value to Not Activated)

 Deactivate the automatic rear wiper wiping with rain and reverse gear
* Applicable to all models *



 https://www.youtube .com / watch? v = BtSBUz4hox4



If you don't like that every time it's raining and you back up the rear wiper starts, with this mod you can deactivate it.



1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Rear window wiper

4 - Traenenwischen Heck - (Change value to Not Activated)



 Activation of the windscreen wiper after using the windscreen washer water



*Applicable up to MY16 *
After using the water from the windshield washer, the wiper starts working. Activation of the wiper menu.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Windshield wiper
4 - Traenenwischen Front Status - (Change value to Activated)
5 - Menuesteuerung Frontwischer - (Change value to Activated)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Front_wiper:
4 - Traenenwischen Front Status - (Change value to Activated)
5 - Menuesteuerung Frontwischer - (Change value to On)

 Stop windshield wipers when opening the hood

* Applicable up to MY16 *
With the windshield wipers running, when you open the hood, they will stop in whatever position they are.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Windshield wiper
4 - Wischer stopp vei oeffnen der motorhaube - (Change value to Activated)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Front_wiper:
4 - Wischer stopp vei oeffnen der motorhaube - (Change value to On)

 Park windscreen wipers in a vertical position

* Applicable to all models *
It is useful to clean the windows more easily or to replace the brushes without hitting the edge of the bonnet.
1 – Ignition om

2 - Remove key
3 - Leave the wiper lever pressed for 5 seconds. They will be positioned in a vertical position

 Activate rear wiper with reverse gear from the screen
* Applicable to all models *



 https://www.youtube.com/watch?v=sIDP4fUqqbk



With this mod, we activate the rear wiper comfort mode from screen

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Rear window wiper

4 - Menuesteuerung Komfortwischen HW - (Change value to Activated)



 Activation of the rear wiper continuously

* Applicable to all models *

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Rear window wiper
4 - Heckwischer Weiterlauf - (Change value to On)
[div][a name="eight"]



WINDOWS / ROOF / DOORS

 Activate windows for 1 minute when opening the doors.

* Applicable up to MY16 *
With this mod, the windows will work for about a minute if we open a door. If we leave a window open after removing the key, we can close it without putting it back.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Access control 2
4 - Freigabenachlauf FH bei tueroeffnen abbrechen - (Change value to Inactive)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - ZV Komfort
4 - Freigabenachlauf FH bei tueroeffnen abbrechen - (Change value to Inactive)

 Comfort opening and closing of windows

* Applicable up to MY16 *
With This modification will achieve the closing and opening of the windows in comfort mode.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Access control 2
4 - Comfort opening - (Change value to Enabled)
5 - Menuesteuerung komfortbedienung einstellbar - (Change value to Adjustable)
6 - Funk komfort oeffnen - (Change value to Activated)
7 - Comfort closing - (Change value to Activated)
8 - Funk komfort schliessen - (Change value to Enabled)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - ZV Komfort
4 - Comfort opening - ( Change value to Activated)
5 - Menuesteuerung komfortbedienung einstellbar - (Change value to Adjustable)
6 - Funk komfort oeffnen - (Change value to Activated)
7 - Comfort close - (Change value to On)
8 - Schiebedach

 Close windows when rain is detected

* Applicable up to MY16 *



 https://www.youtube.com/watch?v=VCscZMpcWfk

If you leave the car with the windows down and it starts to rain, the car automatically closes the windows. Closed car.
You need to have the rain sensor with four blue sensors. With the two sensor it does not work.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Access control 2
4 - Regenschliessen ein aus - (Change value to Activated)
5 - Menuesteuerung regenschliessen - (Change value to Activated)
6 - Regenschliessen art (Closing mode) - (Change value to Permanent)
7 - We enter Sub Systems
8 - Go to the RLHS or RLFSS component (The name can change)
9 - Long Coding(Bytes mode)
10 - Byte 0 - (Activate Bits 1 and 2)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - ZV Komfort
4 - Regenschliessen ein aus - (Change value to Enabled)
5 - Menuesteuerung regenschliessen - ( Change value to Activated)
6 - Regenschliessen art (Closing mode) - (Change value to Permanent)
7 - We enter Sub Systems
8 - Go to the RLHS or RLFS component (The name can change)
9 - Long Coding( Bytes Mode)
10 - Byte 0 - (Activate Bits 1 and 2)

 As a detail, in order for the windows to close in the event of rain to work, the windshield selector lever must be in Auto mode, if it is not, it does not work .

 Deactivate comfort windows with opening from the cylinder
* Applicable up to MY16 * Video



 https://www.youtube.com/watch?v=AsXWMLrkpko



With this mod we can deactivate the lowering and raising of the windows with the key in the cylinder.

It is very interesting because it has been found that in some cases, with any key in the group, the windows can be lowered, leaving it turned in the lock.In no case does it open a key other than the car, but we have also detected that it can be closed.

1 - Module 09 - Electronic control unit - Code (31347)

2 – Adaptation

3 - Access control 2

4 – Schliesszylinder komfort oeffnen - (Change value to Activated)

5 - Schliesszylinder komfort schliessen - (Change value to On)



* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - ZV Komfort
4 - Schliesszylinder komfort oeffnen - (Change value to Activated)
5 - Schliesszylinder komfort schliessen - (Change value to Activated )

 Luggage compartment closing delay when opening from the control button.

* Applicable up to MY16 *
With this mod, having the car closed, if we only open the trunk, when we close it, we will have about 30 seconds of delay
until the lock closes to be able to open it. This function is very interesting in case we leave the keys inside when closing it. Thanks for the comment to xxjmarti.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Access control
4 - Freigabenachlauf Heck nach Einzeloeffnung ueber HDF-Funktaster - (Change value to Activated)



Another way



App – Boot locking delay



* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - ZV Heck
4 - Freigabenachlauf Heck nach Einzeloeffnung ueber HDF-Funktaster - (Change value to On)

 Automatic car lock when closing the driver's door.

* Applicable from MY18 *
Only for cars with KESSY and not with all ECUs.
1 - Module B7 - Interface input and boot system - Code (20103)
2 - Long Coding(Text mode)
3 - Easy Close - (Change value to On)
4 - Adaptation
5 - Find: Passive_exit_door_slam_lock. (It may be under different menus depending on the control unit)
6 - Change the value to Activated
If you leave the key inside, the car does not lock. Be careful when doing it and try with open windows for example. The doors close immediately.

* Applicable from MY17 *
Only for cars with KESSY
1 - Module B7 - Interface input and starting system - Code (20103)
2 - Long Coding(Text mode)
3 - Anti-closing door lock - (Change value to Activated)
If you leave the key inside, the car won't lock. Be careful when doing it and try with open windows for example. The doors close immediately.

 Disable fuel cap lock while driving.

* Applicable up to MY16 *
With this mod, the fuel cap lock will not work when we are driving.
Originally it closes together with the doors when reaching 20 KM / H. It is an element that suffers a lot of wear and tear, so by doing this mod we will give it a little more useful life.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Access control
4 - Geschwindigkeitsabhaengige tankdeckelverriegelung - (Change value to not active)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code ( 31347)
2 - Adaptation
3 - ZV Autolock
4 - Geschwindigkeitsabhaengige tankdeckelverriegelung - (Change value to Inactive)

 Comfort sunroof opening

* Applicable up to MY16 *
By holding down the buttons on the remote control, you can open and close the sunroof.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Access control 2
4 - SAD Komfort schliessen
5 - SAD Komfort oeffnen

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Schiebedach
4 - SAD Komfort schliessen
5 - SAD Komfort oeffnen Sunroof

 opening modes in comfort opening

* Applicable up to MY16 *
With this mod, you can make the sunroof open to the rear position or just tilt.
To open change the value to Open, to incline change the value to Tilting
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Access control 2
4 - SAD Richtung komfortoeffnen - (Change value to Open or Tilting)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Schiebedach
4 - SAD Richtung komfortoeffnen - (Change value to Open or Tilting)

Buttons The remote control works with the car started

* Applicable up to MY16 *
1 - Module 09 - Electronic control unit
2 - Adaptation
3 - Access Control
4 - Funk vei klemme 15 ein - (Change value to Activated)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit
2 - Adaptation
3 - ZV allgemein
4 - Funk vei klemme 15 ein - (Change value to Activated)

 Kessy works with the car started

* Applicable up to MY16 *
1 - Module 09 - Electronic control unit
2 - Long Coding(Text mode)
3 - Terminal 15 characteristic of passive entry exit function
4 - Function only allowed for terminal 15 off (Change to Deactivated)

 Raise and lower windows with KESSY



* Applicable up to MY16 *
To open or remove, simply by touching the handle as usual.
To raise or lower the windows. Grab the handle and place your thumb on the outside while keeping your hand on the door handle
1 - Module 09 - Electronic control unit
2 - Adaptation
3 - Access control 2
4 - Kessy Komfort oeffnen - (Change to Deactivated)
5 - Kessy Komfort schliessen - (Change to Deactivated)
* Applicable from MY17 *
1 - Module 09 - Electronic control unit
2 - Adaptation
3 - Schlüssellose Zugang- und Startberechtigung
4 - Kessy Komfort oeffnen - ( Change to Off)
5 - Kessy Komfort schliessen - (Change to Off)



 Auto Unlock of doors when putting car into Park (DSG Only)

if your car is setup to auto lock when you drive off then this feature will auto unlock your doors when you select P on the gearbox.



Coding:
1/ Select Control Unit 09

2/ Select Adaptations

3/ Select access control for pre facelift cars and ZV Autolock for Facelift

4/ Select Autounlock NAR
5/ Change setting to Active from Inactive.



 Auto Unlock with Ignition

Coding for one click app on Facelift car called Auto Unlock with Ignition
This causes the car to unlock when you turn the ignition off, it can be enabled (active) or disabled (not active) with this code.

1/ Select Control unit 09
2/ Select Adaptation
3/ Select Access Control
4/ Select automatisches Entriegeln: - Automatic Unlocking
5/ Select Active to turn on or Not Active to turn off

[div][a name="nine"]





DRIVING ASSISTANCE

 Start-up assistant sensitivity on a slope
* Applicable to all models *



 https://www.youtube.com/watch?v=TU3aKAQjtG8



We can modify the way the starting assistant works on a slope, adapting it to our needs or habits.

1 - Module 03 - Brake electronics - Code (40168/20103)

2 - Adaptation

3 - Hill start assistant - (Change value to the desired one - Normal default)



 Slope start assistant incline * Applicable up to MY16 *



 https://www.youtube.com/watch?v=9mA7HQIVkaU

With this modification we can modify when we want it to be activated, depending on the incline of the slope.
1 - Module 03 - Brake electronics - Code (40168/20103)
2 - Adaptation
3 - Hill start assistant, incline limit - (Change value to desired - By default 3%)

 Hill start assistant deactivation
* Applicable to all models * Video



 https://www.youtube.com/watch?v=GHJbjJ25mm8



With this modification we can cancel the slope start system.

1 - Module 03 - Brake electronics - Code (40168/20103)

2 - Long coding

3 - Byte 16

4 - Activate Bit 0



Or another way

1 – Control Unit 03 – Brakes

2 – Long Coding

3 - Byte 25, Bit 0 and Bit 1, untick both





 XDS Extended electronic differential lock
* Applicable to all models *



 https://www.youtube.com/watch?v=80GKVnDXeds



We can modify the way it works, being able to choose between several values ​​in such a way that it better adapts to our way of driving.

1 - Module 03 - Brake electronics - Code (40168/20103)

2 – Adaptation

3 - Extended electronic differential lock - (Change value to the desired one - Standard default)

4 - Activate one of the five options:



 ESP depending on speed

* Applicable to all models *



 https://www.youtube.com/watch?v=Rso02JTvUnQ

Applying this modification we can activate the ESP to act according to the speed of the vehicle or that the value is always fixed.
1 - Module 03 - Brake electronics - Code (40168/20103)
2 - Adaptation
3 - Electronic stability program - (Change value to Activation depending on speed)

 Various ESP modes
* Applicable to all models * Video :



 https://www.youtube.com/watch?v=p6pkUfzhcAg



Applying this modification we will be able to have several ESP and ASR options depending on how we program it.

1 - Module 03 - Brake electronics - Code (40168/20103)

2 - Long Coding(Byte mode)

3 - Byte 29
4 - Bits 0,1 and 2 Enabled shows: Enabled - ASR disabled - ESP disabled.
5 - Bit 1 Enabled sample: Enabled - ASR disabled
5 - Bit 2 Enabled sample: Enabled - ESC disabled
6 - Bits 1 and 2 Enabled sample: Enabled - ESC Sport - ESC disabled
7 - Bits 0 and 3 Enabled sample: Enabled - ASR off - ESC Sport.

 Deactivate ESP and ASR
* Applicable to all models *



 https://www.youtube.com/watch?v=Mow7PrlOrwA



With this modification ESP is permanently deactivated. I don't recommend it, I don't like it at all.

1 - Module 03 - Brake electronics - Code (40168/20103)

2 - Basic settings

3 - ESP and ASR function deactivation
4 - Select one of the two options: (Not activated - Activated)

 Hardness of the steering wheel

* Applicable up to MY16 *



 https://www.youtube.com/watch?v=wwBgjr4v4TM



With this modification you can set the hardness of the steering wheel in different values.

1 - Module 03 - Brake electronics - Code (40168/20103)

2 - Adaptation

3 - Assisted counter-steering wheel - (Change value to the desired one - Strong default)

4 - Select one of the three options:



  Steering wheel intensity at the output rail



* Applicable to all models * Video



 https://www.youtube.com/watch?v=qbJArN9wwKI

With this modification we can change the force how the steering wheel acts to focus on the lane when it detects that we are going off.
1 - Module A5 - Front sensors of the driver assistance system - Code (20103)
2 - Adaptation
3 - Assist. Lane departure warning. Power steering intensity - (Change value to the desired one - Default Medium)

 Steering wheel vibration settings in Lane Assist
* Applicable up to MY16 *



 https://www.youtube.com/watch?v=BXgqqZaESc8



With this modification we can activate the vibration of the steering wheel when it detects that we go off, adjust intensity and delay.

1 - Module A5 - Front sensors of the driver assistance system - Code (20103)

2 - Adaptation
3 - Operating mode - (Change value to Vibration On)
5 - Syst. Lane departure warning, steering wheel vibration intensity - (Change value to desired - Default Medium)
6 - Intervention time - (Change value to desired - Default Late setting in Menu)
7 - Select one of the four options.

 Steering wheel vibration settings in Lane Assist

* Applicable only MY17 *
With this modification we can activate the vibration of the steering wheel when it detects that we go off.
1 - Module A5 - Driver assistance system front sensors - Code (20103)
2 - Adaptation
3 - Lane change assistant system mode - (Change value to Vibration On)

 Driver activity deactivation threshold

* Applicable up to MY16 * Video



 https://www.youtube.com/watch?v=amw5_GW_AaA



With this mod, we can change the behaviour of Lane Assist, so that it acts before or after how it comes by default.

1 - Module A5 - Front sensors of the driver assistance system - Code (20103)

2 – Adaptation

3 - Assist. Lane departure warning, driver inactive deactivated threshold - (Change value to the desired one - Default Medium)



 Activate LANE ASSIST



* Applicable up to MY16 *

1 - Module 17 - Instrument panel - Code (25327)

2 - Long Coding(Bytes or Text mode )

3 - Byte 4 - (Activate Bit 6) or in Text mode - Lane departure warning system - (Change value to Yes)
4 - Byte 11 - (Activate Bit 1) or in Text mode - Lane departure warning assistant, BAP route - (Change value to Yes)

1 - Module 44 - Power steering - Code (19249)
2 - Coding extended (Bytes or Text Mode)
3 - Byte 0 - (Activate Bit 4) or in Text mode - Lane departure warning system - (Change value to Activated)

1 - A5 Module - Front assistance system sensors to the driver - Code (20103)
2 - Long Coding(Bytes or Text Mode)
3 - Byte 16 - (Activate Bit 7) or in text mode - Coding HCA - (Change value to Coding) In MY17 Does not put HCA alone HC

1 - Module A5 - Front sensors of the driver assistance system - Code (20103)
2 - Adaptation
3 - HCA Warning Intensity - (Change value to Medium) In MY17 Warning intensity. Lane Change Assist (Medium)
4 - BAP Personalisierung - (Change value to On) In MY 17 Customization BAP
5 - Personaliz. Lane departure assist with terminal 15 on - (Change value to Last setting) EN MY17 Custom. Interval moment with terminal 15 On

1 - Module 5F - Information electronics 1 - Code (20103)
2 - Adaptation
3 - Car Function List Bap Gen 2
4 - LDW HCA 0x19 - (Change value to On)
5 - --- LDW HCA 0x19 msg bus - (Change value to Terminal 15)
6 - Car Function Adaptations Gen 2
7 - Display lane departure menu - (Change value to On)
8 - Display menu lane departure warning over threshold - (Change value to On)

* Applicable from MY17 *
1 - Module 17 - Instrument panel - Code (25327)
2 - Long Coding(Bytes or Text Mode)
3 - Byte 4 - (Activate Bit 6) or in Text mode - Lane departure warning system - (Change value to Yes)
4 - Byte 11 - (Activate Bit 1) or in Text mode - Warning wizard lane departure, BAP travel - (Change value to Yes)

1 - Module 44 - Power steering - Code (19249)
2 - Long Coding(Bytes or Text Mode)
3 - Byte 0 - (Activate Bit 4) or in Text mode - Lane Departure Warning System - (Change value to On)

1 - Module A5 - Front sensors of the driver assistance system - Code (20103)
2 - Long Coding(Bytes or Text Mode)
3 - Byte 16 - (Activate Bit 7) or in text mode - Coding HC - ( Change value to Coded)

1 - Module A5 - Front sensors of the driver assistance system - Code (20103)
2 - Adaptation
3 - Warning intensity. Lane change assistant - (Change value to Medium)
4 - BAP Customization - (Change value to On)
5 - Custom. Interval moment with terminal 15 On - (Change value to Last setting)

1 - Module 5F - Information electronics 1 - Code (20103)
2 - Adaptation
3 - Car Function List Bap Gen 2
4 - LDW HCA 0x19 - - (Change value to On)
5 - LDW HCA 0x19 msg bus - (Change value to Terminal 15)
6 - Car Function Adaptations Gen 2
7 - Display lane departure menu - (Change value to On)
8 - Display menu lane departure warning over threshold - (Change value to Enabled)

 Deactivate Start / Stop System by voltage limit.
* Applicable up to MY18 *



 https://www.youtube.com/watch?v=oBAR8-3D4Es



With this modification we will permanently deactivate the Start / Stop and we will no longer have to do it every time we start from the button.

1 - Module 19 - Diagnostic interface for data bus - Code (20103)

2 - Adaptation

3 - Start / Stop initial voltage limit - (Change value to 12V - By default 7.6V)

In 2019 models it seems that it does not work as we have been able to collect in the forum.

 Deactivate Start / Stop System by temperature limit.
* Applicable up to MY18 *



 https://www.youtube.com/watch?v=oBAR8-3D4Es



With this modification we will permanently deactivate the Start / Stop and we will no longer have to do it every time we start from the button.

1 - Module 19 - Diagnostic interface for data bus - Code (20103)

2 - Adaptation

3 - EM start stop requirement ambient temperature - (Change value to 50º - By default -50º)



In 2019 models it seems that it does not work according to we were able to collect in the forum.



 Direct acceleration - Throttle response



* Applicable to all models *

https://www.youtube.com/watch?v=Xm1MdXuCF6E

With this mod, we can change the behaviour of the throttle.

Option B offers more linear acceleration without sudden deliveries.

1 - Module 44 - Power steering - Code (19249)

2 - Adaptation

3 - Driving profile switching Options:

  A - Gradual, controlled by time

  B - Directly, controlled by threshold value



 Driver Profile - Driving modes

* Applicable to all  models *



https://www.youtube.com/watch?v=rQhf7dN0FgY



With this mod, we can change the behaviour of the car, in dynamic mode it behaves somewhat more cheerful in the reactions.
1 - Module 44 - Power steering - Code (19249)
2 - Adaptation
3 - Power steering characteristic lines - (Change value to Dynamics or others - By default Profile button)

 Trailer stabilizer
* Applicable to all models *
For Those of you who have a trailer, it is worth applying this modification. Stabilize the trailer.
1 - Module 03 - Brake electronics - Code (40168/20103/40304)
2 - Adaptation
3 - Trailer stabilizer - (Change value to On)

 Light Assist always active when starting off
* Applicable up to MY16 *



 https : //www.youtube.com/watch? v = QxtTxtoGt6w

With this modification when starting the car the automatic lights are activated by default.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Assistance light functions
4 - Fernlichtassistent reset - (Change value to Not Activated)
* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Fernlicht assistent
4 - Fernlichtassistent reset - (Change value to Not Activated)

 Modify the configuration of the high beam assistant
* Applicable up to MY16 *

 https: // www. youtube.com/watch?v=PiNqGEPN-co
With this modification we will be able to modify the activation speeds of the main beams in automatic mode
1 - Module A5 - Front sensors of the driver assistance system - Code (20103)
2 - Adaptation
3 - Activation speed for assistance. High beam - (Change value to the desired one - By default 57 Km / H)
4 - Speed ​​threshold. To recomend. Road lights OFF - (Change value to the desired one - By default 27 Km / H)

 Activate automatic lights in case of rain
* Applicable to all models *
1 - Module 09 - Electronic control unit
2 - We enter RLHS or RLFSS Subsystem
3 - Long Coding(Bytes mode)
4 - Byte 0 - (Activate Bit 1)

 Activate high beams from 140 Km / h
* Applicable up to MY16 *
1 - Module 09 - Electronic control unit
2 - We enter RLHS or RLFSS Subsystem
3 - Byte 0 - (Activate Bit 0)
4 - Adaptation
5 - RLS lights for autobahn
6 - Pv autobahn on - (By default 140 km / h)

 Adjust the sensitivity of the light sensor
* Applicable to all models *



 https://www.youtube.com/watch?v=oJos231Elkk



With this modification you can adjust the sensitivity of the light sensor.

1 - Module 09 - Electronic control unit - Code (31347)

2 – Adaptation

3 - Assist light functions

4 - Lichtsensorempfindlichkeit - (Change value to desired - Normal by default)



 Front Assist detects static objects
* Applicable to all models *
1 - Module 13 - Cruise Control - Code (14117)
2 - Long Coding(Text Mode)
3 - Reaction on standing objets - (Change value to On)

 Prevent Start / Stop from starting when the car in front moves away
* Applicable from MY17 *
On occasions when in a traffic jam, the Start Stop stops the car carrying the active ACC.
When the car in front drives away we automatically start the car again, it can be very frustrating and repetitive. With this mod you will eliminate this annoying function.
1 - Module 13 - Cruise Control - Code (14117)
2 - Adaptation
3 - Extended reset function - (Change value to OFF)
[div][a name="ten"]



FIS / FRAME INFORMATION

 Activate overrun warning speed and at what speed
* Applicable to all models *



 https://www.youtube.com/watch?v=DufN1jBRcGQ



With this modification we can activate the speed warning and at what speed.

1 - Module 17 - Instrument panel - Code (25327)

2 - Long Coding

3 - Byte 0 - (Activate Bit 6)



Other way

1 - Adaptation

2 - Activation and deactivation of all development messages

3 - Warning speed - (Change value to On)

7 - Speed ​​- (Change value to desired value, for example 120 Km)

Activate in Settings - Table and then exit in the FIS within Trip Data.

 Activate the rear fog indicator
* Applicable to all models *



 https://www.youtube.com/watch?v=M-DjZ1Nzxz4



With this modification we will be able to see when we have the rear fog on in the indicator on the frame.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Long Coding(Bytes Mode)

3 - Byte 7 - (Activate Bit 4)



 Activate carbon bottom in FIS

* Applicable to all models *



 https: // www .youtube.com / watch? v = Zi2Jf7Wb6g0



With this mod, we change the background of the FIS to Carbon mode. Only in FIS to COLOUR

1 - Module 17 - Instrument panel - Code (25327)
2 - Adaptation
3 - Screen image - (Change value to Variant 2)

 Activate the traffic sign recognition function
* Applicable up to MY16 *



 https: // www.youtube.com/watch?v=qX7oKhBTJZk



With this mod, we can make our car show us the road signs in the FIS. It is necessary to have the camera installed.

1 - Module 5F - Information electronics 1 - Code (20103)

2 - Adaptation

3 - Car Function Adaptations Gen 2 (In models that do not have this section, look directly at points 4 and 5)

4 - Display road menu sign identification - (Change value to On)
5 - Display road sign identification over threshold menu - (Change value to On)
6 - Car Function List Bap Gen 2 (In models that do not have this section, search directly for points 7 and 8)
7 --- - Traffic sign recognition 0x21 - (Change value to On)
8 - Traffic sign recognition 0x21 msg bus - (Change value to Comfort data bus) Extended

1 - Module A5 - Front sensors of the driver assistance system - Code (20103)
2 - Long Coding(Bytes mode) text Coding vze activated
3 - Byte 1 - (Activate Bit 0) or Text Coding VZE mode - (Change value to Activated)
4 - Adaptation
5 - Show end of limitation signals speed - (Change value to On)
6 - Show additional valid signs - (Change value to 100111)
7 - Show overtaking prohibitions - (Change value to On)
8 - Identification of traffic signs mode merge - (Change value to Merge traffic signs)
9 - Function Module Road Sign Recognition - (Change value to On)
10 - Long Coding(Text mode)
11 - Coding HCA - (Change value to Coded)

1 - Module 17 - Instrument panel - Code (25327)
2 - Long Coding(Bytes mode)
3 - Byte 5 - (Activate Bit 2) or in Text mode: Traffic sign detection - (Change value to Yes)
Restart the infotainment by keeping the power button pressed for 10 seconds.
* Applicable from MY17 *
1 - Module 5F - Information electronics 1 - Code (20103)
2 - Adaptation
3 - Car Function Adaptations Gen 2
4 - Display road sign identification menu - (Change value to On)
5 - Display road menu sign identification over threshold - (Change value to On)
6 - Car Function List Bap Gen 2
7 - Traffic sign recognition 0x21 - (Change value to On)
8 - Traffic sign recognition 0x21 msg bus - (Change value to Terminal 15)

1 - Module A5 - Driver assistance system front sensors - Code (20103)
2 - Long Coding(Bytes mode)
3 - Byte 16 - (Activate Bit 4) (Traffic Sign recognition VZE)

1 - Module 17 - Dashboard - Code (25327)
2 - Long Coding(Bytes mode)
3 - Byte 5 - (Activate Bit 2) or in Text mode: Traffic sign detection - (Change value to Yes)
Restart the Infotainment by keeping the power button pressed for 10 seconds.

 Personal Adjustment Display of consumption in FIS
* Applicable to all models *
With this mod, you can calibrate the consumption if you see that they do not conform to what you think.
1 - Module 17 - Instrument panel - Code (25327)
2 - Adaptation
3 - Correction of consumption index / fuel range - (Change value to the desired one - By default 100%)
The adjustment allows steps of 1%, Values Maximum and Minimum are 85 (%) and 115 (%).

 Driving warning with parking lights
* Applicable up to MY16 *
1 - Module 09 - Electronic control unit
3 - Adaptation
4 - Low beam and position light

5 - Warnung fahrt mit standlicht - (Change value to On)

 Warning of forgotten key in ignition
* Applicable to all models *
Yes you leave the car stopped and do not remove the key from the ignition, you will get a message in the FIS saying: REMOVE THE KEY
1 - Module 17 - Instrument panel - Code (25327)
2 - Long Coding(Text mode)
3 - Warning device ignition key - (Change value to Warning)

 Warning in FIS of rear fog light activated at a set speed
* Applicable up to MY16 *
The warning that we have the fog light on is a bit tedious. With this mod we can change the speed at which we want to be notified.
For example at 50 km / h. If we drive below that speed with fog on, the warning will not jump.
1 - Module 09 - Electronic control unit
2 - Long Coding(Bytes mode)
3 - Adaptation
4 - Low beam and position light

5 - Nebelschlusslicht warngeschwindigkeit - (Change value to the desired one. By default 0 km)

* Applicable from MY17 *

1 - Module 09 - Electronic control unit
2 - Long Coding(Bytes Mode)
3 - Adaptation
4 - Aussenlicht Heck
5 - Nebelschlusslicht warngeschwindigkeit - (Change value to the desired one. By default 0 km)

 Compass in FIS (Having navigator)
* Applicable to all models *
With this mod, you will add the compass in the FIS (Only if you have navigator)
1 - Module 17 - Instrument panel - Code (25327)
2 - Long Coding
3 - Byte 10 - (Activate Bit 6)
Other way:
1 - Long Coding(Text mode)
2 - Navigation / Compass - (Change value to Yes)
3 - Compass indicator - (Change value to the desired one - By default Lower position)

 Change system language in the FIS
* Applicable to all models *



https://www.youtube.com/watch?v=- dtGZ-z69sE

With this mod, we can change the language of the system in the FIS
1 - Module 17 - Instrument panel - Code (25327)
2 - Adaptation
3 - Language - (Change value to the desired one)

 Change Initial screen of the FIS
* Applicable to all models *

Only in models with FIS in COLOUR. With this mod, we change the Fis splash screen. In each of the modalities it will show us a different logo or welcome.
1 - Module 17 - Instrument panel - Code (25327)
2 - Long Coding(Text mode)
3 - Initial screen
4 - Select one of the eight options - Default variant 1

 Timer in FIS
* Applicable to all models *



https://www.youtube.com/watch?v=tkQZuQjOjnI

You have to select it on the Settings screen. It does not work on all VC digital boxes.
With this mod, you will add a timer in the FIS.
1 - Module 17 - Instrument panel - Code (25327)
2 - Long Coding
3 - Byte 1 - (Activate Bit 3)

 Digital odometer in FIS
* Applicable to all models *
With this mod, you will add the digital odometer in the FIS (You have to select it in the Settings screen)
1 - Module 17 - Instrument panel - Code (25327)
3 - Adaptation
4 - Digital tachometer - (Change value to Indication)

 Liters to be refueled in FIS
* Applicable to all models *



https://www.youtube.com/watch?v=8irBs34Zwso

You have to select it in the Settings screen, it works on VC digital charts.
With this mod, you will add the liters function that you have to refuel.
1 - Module 17 - Instrument panel - Code (25327)
2 - Long Coding
3 - Byte 10 - (Activate Bit 4)

 Needle test mode when switching on the ignition
* Applicable in analog panels *



https: // www. youtube.com/watch?v=lTLBmowesQU



With this mod, when turning on the ignition it makes the staging or needle test, it is a very striking mod. It does not work on VC digital dashboard.



1 - Module 17 - Instrument panel - Code (25327)

2 - Long Coding

3 - Byte 1 - (Activate Bit 0)

 Show driving modes in FIS
* Applicable to all models *
1 - Module 19 - Diagnostic interface for data bus - Code (20103)
2 - Long Coding(Bytes Mode)
3 - Byte 8 - (Activate Bit 4)

 Temperature of oil in FIS
* Applicable to all models *



 https://www.youtube.com/watch?v=csgrUYV747w



Works on VC digital dashboard.

With this mod, you will add the oil temperature in the FIS, you have to select it on the Settings screen

1 - Module 17 - Instrument panel - Code (25327)

2 - Extended coding

3 - Byte 10 - (Activate Bit 1)



Other form:

1 - Adaptation
2 - Oil temperature indication - (Change value to Yes)

 Change the car image for another variant in the FIS
* Applicable to all models *
Only analogue panels. In case we change the frame for a second-hand one and it is not the same variant or why you might like to put another one.
1 - Module 17 - Instrument panel - Code (25327 or 20103)
2 - Long Coding(Text Mode)
3 - Vehicle derivation (Change to desired value)
Variant 0 = Three doors / Variant 1 = Five doors / Variant 2 = ST . The rest are repeated in the same order.

 Panel lights always on with Control in Automatic (Position and crossing) (Contribution by jasoriab)
* Applicable to all models *
In position 0 it will turn off when passing through low light areas.
1 - Module 17 - Instrument panel - Code (25327 or 20103)
2 - Adaptation
3 - Illumination algorithm
4 - Scale_switching_algorithm - (Change value to LDS)

 Illuminate needles when opening the car
* Applicable to all models *
Only analog tables.
1 - Module 17 - Instrument panel - Code (25327 or 20103)
2 - Adaptation
3 - Illumination algorithm (Change value to Parking light)

 LED lights intensity curve instrument panel 1 (Day)
* Applicable to all models *
With this mod, you can change the intensity of the instrument panel lighting by giving it some values ​​for the day.
1 - Module 17 - Dashboard - Code (25327)
2 - Adaptation
3 - Dimming characteristic curve adjustement clock dial day
4 - Y1 - Default value (0) - Change to (3) (Maximum brightness)
5 - Dimming characteristic curve adjustement clock dial day
6 - Y2 - Default value (0) - Change to (5) (Brighter )

7 - Dimming characteristic curve adjustement clock dial day
8 - Y3 - - Default value (0) - Change to (8) (Medium brightness)
9 - Dimming characteristic curve adjustement clock dial day
10 - Y4 - Default value (5) - Change to (8) (More dark)
11 - Dimming characteristic curve adjustement clock dial day
12 - Y5 - Default value (30) - Change to (14) (Maximum darkness)
It changes on the screen: Menu-Settings-Screen-Brightness- Select an option.

 Instrument panel LED lights intensity curve 2 (Night)
* Applicable to all models *
With this mod, you can change the intensity of the instrument panel lighting by giving it values ​​for night.
1 - Module 17 - Dashboard - Code (25327)
2 - Adaptation
3 - Dimming characteristic curve adjustement clock dial night
4 - Y1 - Default value (5) - Leave it as is (Maximum brightness)
5 - Dimming characteristic curve adjustement clock dial night
6 - Y2 - Default value (5) - Change to (6) (Brighter )

7 - Dimming characteristic curve adjustement clock dial night
8 - Y3 - Default value (36) - Change to (E) (Medium brightness)
9 - Dimming characteristic curve adjustement clock dial night
10 - Y4 - Default value (44) - Change to (1E) (Darker)
11 - Dimming characteristic curve adjustement clock dial night
12 - Y5-- Default value (59) - Change to (32) (Maximum darkness)
It is changed on the screen: Menu -Adjustments-Display-Brightness- Select an option.
[div][a name="eleven"]



MENUS / SCREENS / OPTIONS

As a rule, after making any changes to the 5F, the infotainment must be reset by pressing and holding the power button for 10 seconds so that it reads the changed data. You will avoid problems if you do.

 Activation of Driving School Mode in the Car / CAR menu
* Applicable to all models *



 https://www.youtube.com/watch?v=UgoYhpE4bVE



With this mod, we activate a new screen in the infotainment. Driving school mode.

1 - Module 5F - Information electronics 1 - Code (20103)

2 - Adaptation

3 - Car Function Adaptations Gen 2

4 - Display driving school menu - (Change value to On)

5 - Display driving school menu over threshold - (Change value to On)
6 - Car Function List CAN Gen 2
7 - Driving school - (Change value to Available)
8 - Search submenu - Driving school msg bus - (Change value to Comfort data bus)
Reset Infotainment

 Activate background Carbon in Infotainment
* Applicable to all models *



 https://www.youtube.com/watch?v=qwxV5I5G-PM



With this mod, we change the background of the infotainment screen to Carbon mode.

1 - Module 5F - Information electronics 1 - Code (20103)

2 - Long Coding(Text mode)

3 - Byte 17 Skinning - (Change value to Skin 3 on 6.5 "screens, Skin 4 on 8" screens or Skin 2 for 5.8 "displays)

Due to the constant changes of screens it is possible that some screens do not make the change with the mentioned Skin.
The 8 "ones can work with Skin 3 or 4. Never put a Skin higher than 4 or the screen goes black.
If this happens, simply change the one you had and restart the Infotainment.

In the last screens of the 2019 can no longer be changed only with these steps, you must also carry out these others:
- Once the Skin change is made as indicated in the mod, perform the Engineer Mode mod.
- Once it is done, follow these steps.A31
Press the menu button without releasing until the first menu appears and without releasing a new menu will appear, that of Engineer.
For subsequent accesses, keeping pressed until the first menu appears will be enough, a new section will be created that will open this engineer mode called TESTMODE MENU.
Within the TESTMODE MENU we select HMI Skin Change.
Inside there will be several Skins, select the one that corresponds (In this case SPORT).

 Activate or Deactivate the daytime lights from the screen
* Applicable up to MY16 *



https://www.youtube.com/watch?v=AU1ZF61icMk



With this modification we will add a new option in the lights menu that will allow us to activate or deactivate daytime running lights (DRL) from the display.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Daytime running light
4 - Tagfahrlicht Aktivierung durch BAP oder Bedienfolge moeglich - (Change value to Activated)

* Applicable from MY17 *
With this modification we will add a new option in the lights menu that will allow us to activate or deactivate the daytime lights (DRL) from the screen.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Aussenlicht_Front
4 - Tagfahrlicht Aktivierung durch BAP oder Bedienfolge moeglich - (Change value to Activated)

 Change degrees from Celsius to Fahrenheit
* Applicable to all models *
With this mod we can change the temperature degrees from Celsius to Fahrenheit
1 - Module 17 - Instrument panel - Code (25327)
2 - Long Coding(Text mode)
3 - Temperature - Options: (Celsius Degrees - Fahrenheit Degrees)

Another way
1 - Adaptation
2 - Adjusted Units
3 - Temperature - Options: (Celsius Degrees - Fahrenheit Degrees)

 Change radio logo (Normal, FR, CUPRA, Ecomotive, Xperience, FR Line)

* Applicable to all models *



 https://www.youtube.com/watch?v=Qz7JM3qnPsg



With this mod, we can change the initial logo and at the same time the figure of the car on the CAR section.

1 - Module 5F - Information electronics 1 - Code (20103)

2 - Long Coding(Text mode)

3 - Byte 18 Screenings

Value in 0 - Seat Normal

Value in 1 - Seat FR

Value in 2 - Seat Cupra
Value in 3 - Seat Ecomotive
Value in 5 - Seat Xperience
Value in 6 - Seat FR Line

Value in 9 - Cupra in gold (Only on units with newer firmware)

 Control the interior lighting by zones from the CAR Menu
* Applicable to MY16 *
With this mod, we activate new options in Settings-Lights from where we can control the lights by zones.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Long Coding(Bytes mode)
3 - Byte 17
4 - Activate Bit 3 (Ambient light control)
5 - Activate Bit 2 (All zones)
6 - Activate Bit 1 (Door light intensity)

 Engineer Mode and Green Menu
* Applicable to all models *



https://www.youtube.com/watch?v=QbMpR1JiZsg

With this mod, we activate the engineer mode. Be cautious you are not going to mess up.
1 - Module 5F - Information electronics 1 - Code (20103)
2 - Select CHANGE SERVICE
3 - Development mode.
4 - Adaptation
5 - Development mode - (Change value to On)
6 - Restart the Infotainment
7 - Press and hold the Menu button until the Updates Menu exits and Do not release until the Engineer Menu exits.

 OFF ROAD menu with and without navigator
* Applicable to all models *



https://www.youtube.com/watch?v=efZmj2KaPbE



1 - Module 5F - Information electronics 1 - Code (20103)

2 - Adaptation

3 - Car Function Adaptations Gen 2
4 - Display compass menu - (Change value to On)
5 - Display compass over threshold menu - (Change value to On)
6 - Car Function List Bap Gen 2
7 - Compass 0x15 - - (Change value to On)
8 - Compass 0x15 msg bus (Comfort data bus)

1 - Long Coding(Text mode)
2 - Byte 24 Navigation System - (Change value to On)

This mod does not allow all functions without  having the browser.  Obviously the altitude and the compass do not show data.
It also reports a bug in the 5F module saying that it lacks environmental data
(It only reports it when doing analysis with OBDeleven, nothing appears on the screen)
A normal error and that we do not have to worry about. With the standard navigator, everything works 100%.
In the latest models the altitude line no longer appears in the center, they have modified the design. In case it seems strange to you.

 Save last view of Sport menu
* Applicable to all models *
We change the watches to our liking.
We give the button on the screen More or Next depends on the Firmware. (On the right)
We click on the Previous screen button.
We remove the key and when we put it back, it will appear as we had it before removing key.

 Activation of customization profiles
* Applicable to all models *
Enable 3 custom controller profiles and guest account with separate personal settings. Profiles can be changed from the instrument cluster and infotainment display.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Long Coding(Bytes mode)
3 - Byte 8 - (Activate bit 2)
4 - Byte 11 - (Activate bit 4)
5 - Adaptation
6 - Personalisierung
7 - Personalisierung aktiv - (Change value to On)
8 - Aktivierungsoption im HMI menue sichtbar - (Change value to On)
9 - Benutzerkontenverwaltung in HMI menue sichtbar - (Change value to On)
10 - Personalisierungsfunktionen an HMI menue sichtbar - (Change value to On)
11 - Anzahl benutzerkonten - (Change value to 4)
12 - Automatische schluesselzuordnung - (Change value to On)

1 - Module 08 - Air conditioning / heating electronics
2 - Long Coding(Bytes mode) or text mode Personalization (Change value to Enabled)
3 - Byte 15 - (Enable bit 3)

1 - Module 17 - Instrument panel - Code (25327 or 20103)
2 - Long Coding(Bytes Mode)
3 - Byte 10 - (Enable bit 0) or text mode Customization (Change value to YES)
Restart the screen to show the new functions. The settings we have are erased and go back to how they came from the factory. We adjusted and solved again.
They also throw two errors in the scan, we deleted them and scare fixed.



[div][a name="twelve"]



PARKING SYSTEMS

 Enable rendering visual parking sensors
* Applicable to all models *
1 - Module 76 - Assisted parking
2 - Long Coding(Bytes Mode)
3 - Byte 2 - (Activate Bit 0)
Other way:
1 - Long Coding(Bytes Mode)
2 - Optical indicator of the parking aid
3 - Change to OPS indication

 Lower audio when parking
* Applicable to all models *
1 - Module 76 - Assisted parking - Code (71679)
2 - Adaptation
3 - Audio descentrequest- (Change value to ON)

 Disable guided parking guidelines
* Applicable to all models *
1 - Module 76 - Parking aid - Code (71679)
2 - Long Coding(Bytes Mode)
3 - Byte 1 - (Disable bit 5)

 Disable parking tone
* Applicable to all models *
1 - Module 76 - Parking aid - Code (71679)
2 - Adaptation
3 - Activation tone p. parking assistance - (Change value to OFF)

 Modify parking deactivation speed
* Applicable to all models *
1 - Module 76 - Parking assistance - Code (71679)
2 - Adaptation
3 - Deactivation speed p. parking aid - Options (10 km / h)
4 - Set value to desired

 Adjust clearance to the curb of the Parking assistant
* Applicable to all models *
This mod is used to adjust the approach to the curb of the parking assistant.
1 - Module 76 - Assisted parking - Code (71679)
2 - Adaptation
3 - Distance to the curb.
4 - Put 12 or if you want me to adjust 'to the millimeter', we put 10.

 Activate braking in maneuver
* Applicable from MY17 * 5QA control units onwards.
1 - Module 03 - Brake electronics - Code (40168/20103)
2 - Long Coding(Byte mode)
3 - Byte 24 - (Activate bit 5)

1 - Module 17 - Instrument panel - Code (25327)
2 - Extended encoding (Byte mode)
3 - Byte 13 - (Activate bit 0)

1 - Module 76
2 - Adaptation
3 - Braking function during manoeuvre - (Change value to Activated)



 Change Stop/Start Button to Valet Parking Button



Facelift Cars only

Check out forum.obdeleven.com/post/33741 for the original Golf coding and Video

1) Select Control Unit 09 - Central Electronics
2) Enter the security code: 31347
3) Select Adaptation
4) Select Button in center console-Function of button 1
5) Select Change value: “Start-stop” to “valet_parking”





[div][a name="thirteen"]



BRAKES

 Drying the brake discs
* Applicable to all models *



https: // www. youtube.com/watch?v=8Dr6Q6BA4NM



Our cars have a brake drying system that acts every time we start the car for a set time.



1 - Module 03 - Brake electronics - Code (40168/20103/40304)

2 - Adaptation

3 - Drying the brake discs - (Change value to the desired one - Central default)

 Dynamic Adaptation Brake Release
* Applicable up to M16 *



https://www.youtube.com/watch?v=-Omzrok3c3w



With this mod, we can make the start of our vehicle a little more rally-like. By default, being Strong prevents the wheels from skidding at the start.



1 - Module 03 - Brake electronics - Code (40168/20103)

2 -Starting oscillation reduction

3 - Select options - (Strong - Normal - Maximum - Disabled) (Torque limitation: Disabled-Enabled)

4 - Select Torque limitation5 - Change value to the desired one.



* Applicable from M17 *



1 - Module 03 - Brake electronics - Code (40168/20103)

2 - Dynamic start-up assistance system
3 - Select options - (Strong - Normal - Maximum - Disabled)

 Change brake booster force
* Applicable to all models *
According to theoldboy, he has tested it on his cupra and he tells us the following:
I set it for a better feel and strength Nice and firm braking.
The lower the value, the firmer the feel.
The pedal feel is much firmer and more direct.
Some warning lights will appear on the dash and will clear when you drive off

1 - Module 03 - Brake electronics - Code (40168/20103)
2 - Adaptation
3 - Brake servo - (Change value to the desired one - Default 4)

 Progressive pressure on braking
* Applicable to all models *
According to theoldboy, it allows the driver to modulate the brake pressure progressively. Prevents the car from unintentionally activating the abs.
1 - Module 03 - Brake electronics - Code (40168/20103)
2 - Adaptation
3 - Hydraulic brake assistant - (Change value to Not Activated)



 Straight ahead brake stabilisation

This is for use on the race track, VW Have installed some nannies that you see when running over 100 mph and

breaks try and make you stop in a straight line which can cause issues when coming off a fast straight into fast bend.



1 - Control Unit: 03 Brakes
2 - Adaptation
3 - Select Straight ahead brake stabilisation
     Change value from activated to Not Activated to turn on and from Not Activated to Activated to turn off.
     Save using Green Tick.
     Security code 25757



Another way



One click app – Straight ahead brake stabilisation



Brake Pad Wear indicator off
If you are replacing the pads or the Brake Calipers and the new one's do not support the brake pad wear sensor then using the following

Long coding
Select Control unit: 09 Central Electrics
Select Long coding (0)
Select Brake pad wear:
Change value to not installed





Brake check when using ACC

Facelift cars only

When the brake is activated when using ACC, the emergency switch comes on. It also lights up when the brake is pressed during normal driving.

1/ Select Control unit 09 Central Electrics
2/ Select Adaptation
3/ Select Leuchte 35 LED Warnblinktaster C48
4/ Select Lichtfunktion G 15
5/ Change from nicht aktiv to Bremslicht
6/ Select Dimmwert GH 15
7/ Change from 0 => 100



This has not been tested so please give feedback if this works.



[div][a name="fourteen"]





CHANGE OF BULBS AND CURRENTS

 Eliminate the error of the led lamps in front fog lamps
* Applicable to all models *



https://www.youtube.com/watch?v=x8RjCv0GBBY



If you are thinking of putting LEDs on the front fog lights, with this modification you will avoid the error of bulb failure.

1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte13NL RB
4 - Lassttyp 13 - (Change value to Led Lichtmodul)
5 - Dimmwert AB13 - (Change value to 127)
6 - Leuchte12NL LB45
7 - Lassttyp 12 - (Change value to Led Lichtmodul)
8 - Dimmwert AB12 - (Change value to 127)

 Eliminate the error of the led lamps on the license plate
* Applicable to all models *



 https://www.youtube.com/watch?v=XblPb8s36Zs



If you are thinking of putting LEDs on the license plate, with this modification you will prevent the Fis from giving you the warning of a blown bulb .

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation
3 - Leuchte25KZL HA59
4 - Lasttyp 25 - (Change value to Allgemeine Led)
5 - Dimmwert AB25 - (Change value to 127)

 Eliminate led lamp error in reverse gear
* Applicable to all the models *
If you are thinking of putting a led in the reversing light, with this modification you will prevent the Fis from giving you the warning of a burnt out bulb.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte29RFL RA64
4 - Lasttyp 29 - (Change value to Allgemeine Led)
5 - Dimmwert AB29 - (Change value to desired - Maximum 127)

 Eliminate the error of the led lamps in the rear indicators
* Applicable up to MY16 *
If you are thinking of putting LEDs on the rear indicators, with this modification you will prevent the Fis from giving you the warning of a blown bulb.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte18BLK HLA60
4 - Lasttyp 18 - (Change value to Allgemeine Led)
5 - Dimmwert AB18 - (Change value to 127)
6 - Leuchte19BLK HRC31
7 - Lasttyp 19 - (Change value to Allgemeine Led)
8 - Dimmwert AB19 - (Change value to 127)

 Eliminate the error of the footrest LED lamps
* Applicable to all models *
If you are thinking of putting LEDs on the footrest panels, with this modification you will prevent the Fis from getting the warning of a burnt out bulb.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte30FR LC72
4 - Lasttyp 30 - (Change value to Led Kleinleistung - By default 2 * 5W)

 Reverse gear intensity adjustment
* Applicable to all models *
With this modification we can adjust the intensity of the reversing light.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte29RFL RA64
4 - Dimmwert AB29 - (Change value to the desired one - Maximum 127)

 Adjusting the intensity of the front day lights (DRL) ( Led headlights)
* Applicable up to MY16 *
With this modification we can adjust the intensity of the daylight as we want.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte2SL VLB10
4 - Dimmwert CD2 - (Change value to the desired one - Maximum 127)
5 - Leuchte3SL VRB21
6 - Dimmwert CD3 - (Change value to the desired one - Maximum 127)

 Adjusting the intensity of the front daytime lights (DRL) (Non-Led Headlights)
* Applicable up to MY16 *
With this modification we can adjust the intensity of the daytime lights as we want.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte4TFL LB4
4 - Dimmwert AB4 - (Change value to the desired one - Maximum 127)
5 - Leuchte5 TFL RB32
6 - Dimmwert AB5 - - (Change value to desired - Maximum 127)

 Adjusting the intensity of the rear fog lamp
* Applicable to all models *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte28RFL LC11
4 - Dimmwert AB28 - (Change value to the desired one - Maximum 127 )
[div][a name="fifteen"]





COMING / LEAVING HOME

 Coming Home and Leaving Home without having a light or rain sensor

* Applicable up to MY16 *
If you don't have a rain sensor you can also activate the Coming Home and Leaving Home with this modification.
For leaving to work, before getting out of the car you have to give Gust.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Comfort lighting
4 - Coming Home Verbaustatus - (Change value to Automatic)
5 - Menueeinstellung cominghome - (Change value to 20 - By default 10 sec)
6 - Coming home Einschaltereignis - - (Change value to Driver Door)
7 - Menuesteuerung coming home Werkseinstellung - (Change value to On)
8 - Coming home Leuchten - (Change value to Low Beam)
9 - Leaving home verbausstatus - (Change value to Unlocked)
10 - Menuesteuerung leaving home freischaltung per BAP - (Change value to Activated)
11 - Menueinstellung leaving home zeit per BAP - (Change value to 20 s)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Aussenlicht_uebergreifend
4 - Coming Home Verbaustatus - (Change value to Automatic)
5 - Menueeinstellung cominghome - (Change value to 20 - By default 10 sec)
6 - Coming home Einschaltereignis - ( Change value to Driver Door)
7 - Menuesteuerung coming home Werkseinstellung - (Change value to On)
8 - Coming home leuchteng - (Change value to Low Beam)
9 - Leaving home verbausstatus - (Change value to Unlocked)
10 - Menuesteuerung leaving home freischaltung per BAP - (Change value to On)
11 - Menueinstellung leaving home zeit per BAP - (Change value to 20 s)

 Pseudo Coming Home and Leaving Home without a light or rain sensor

* Applicable to all models *
A very simple way to have a pseudo Home / Leaving Home activated in our vehicle
is to apply the on condition of the roof lighting console to the lights that we want
to come on when opening or closing the car, taking advantage of the courtesy ignition when open the car and the
timing of it when closing it.
For this, we will simply have to enter module 09 - Adaptation.
We choose the light that we want to act as Homing and we look for a free channel.
For example:
We want the right fog light to turn on:
- Leuchte13NL RB5 and we search for a free channel.
- In this case the C13 and we change the value of Nicht Aktiv to Innenlicht (Inner light)
Now we are going to activate the intensity we want in the chosen channel:
- Dimmwert CD 13: and change the value to the one we like the most depending on what we want it to light.
We repeat the process with all those lights that we want to activate.
It is possible that with the daytime LEDs it fails and does not work. Matter of testing.
You have the table of lights here: viewtopic.php? F = 8 & t = 116700 # p1876846 It will depend on the year of manufacture of your car.





 Coming Home and Leaving Home automatic activation



* Applicable up to MY16 *

With this modification the Coming and Leaving Home system is activated automatically.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Comfort lighting
4 - Coming home verbaustatus - (Change value to Automatic)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Aussenlicht_uebergreifend
4 - Coming home verbaustatus - ( Change value to Automatic)

 Coming Home active when opening the driver's door

* Applicable up to MY16 *
With this modification, Coming Home can be activated when opening the driver's door.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Comfort lighting
4 - Coming home Einschaltereignis - (Change value to Driver Door)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Aussenlicht_uebergreifend
4 - Coming home Einschaltereignis - (Change value to Driver Door)

 Coming Home and Leaving Home also in third brake light
* Applicable to all models *



https://www.youtube .com / watch? v = XA56_pqp8D4



With this modification the third brake light will be active in Coming and Leaving Home.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Leuchte22BR MA57

4 - Lichtfunktion C22 - (Change value to Coming home oder leaving home Aktiv)

5 - Dimmwert CD22 - (Change value to 100)

6 - Dimming direction CD22 - (Change value to Maximize)

 Coming Home and Leaving Home also in the fog lights
* Applicable to all models *



https://www.youtube.com/watch?v=eVqSNG2t8fo



With this modification you can include the cornering’s to the coming home and the leave home.

1 - Module 09 - Electronic control unit - Code (31347)

2 – Adaptation

3 - Leuchte12NL LB45

4 - Lichtfunktion E12 - (Change value to Coming home oder leaving home aktiv)

5 - Dimmwert EF12 - (Change value to 100)

6 - Dimming direction EF12 - (Change value to Maximize)

7 - Leuchte13NL RB5

8 - Lichtfunktion E13 - (Change value to Coming home oder leavint home aktiv)

9 - Dimmwert EF13 - (Change value to 100)
10 - Dimming direction EF13 - (Change value to Maximize)
11 - Comfort lighting
12 - Coming home leuchten - (Change value to Fog Light)

 Coming Home and Leaving Home in mists instead of lights low beam
* Applicable to all models *
 The front fog lights will be used as welcome lights instead of the low beam.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
11 - Comfort lighting
12 - Coming home leuchten - (Change value to Nebellicht)

 Coming Home and Leaving Home only DRL, without front position lights ( All headlights)
* Applicable to all models *
With this modification only the DRL will be active in the Coming and Leaving Home. Depending on the model you can find the Coming on channels B for MY18, E for MY17 and C up to MY16
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte6ABL LC5
4 - Lichtfunktion ?? - (Find the value Coming home oder leaving home Aktiv and change it to Nich aktiv)
5 - Leuchte7ABL RB1
6 - Lichtfunktion ?? - (Find the value Coming home oder leaving home Aktiv and change it to Nich aktiv)

 Coming Home and Leaving Home also in internal and external rear lights. (LED lights)
* Applicable to all models *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte23SL HLC10
4 - Lichtfunktion C23 - (Change value to Coming home oder leaving home aktiv)
5 - Dimmwert CD23 - (Change value to 100)
6 - Dimming direction CD23 - ( Change value to Maximize)
7 - Leuchte24SL HRA65
8 - Lichtfunktion C24 - (Change value to Coming home oder leaving home aktiv)
9 - Dimmwert CD24 - (Change value to 100)
10 - Dimming direction CD24 - (Change value to Maximize)
11 - Leuchte26NSL LA72
12 - Lichtfunktion C26 - (Change value to Coming home oder leaving home aktiv)
13 - Dimmwert CD26 - (Change value to 100)
14 - Dimming direction CD26 - (Change value to Maximize)
15 - Leuchte27NSL RC6
16 - Lichtfunktion C27 - (Change value to Coming home oder leaving home aktiv)
17 - Dimmwert CD27 - (Change value to 100)
18 - Dimming direction CD27 - (Change value to Maximize )

 Coming Home and Leaving Home also on internal and external rear lights. (Non-LED Pilots)

* Applicable up to MY16 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte20BR LA71
4 - Lichtfunktion E20 - (Change value to Coming home oder leaving home Aktiv)
5 - Dimmwert EF20 - (Change value to 100)
6 - Dimming direction EF20 - (Change value to Maximize)
7 - Leuchte21BR RC8
4 - Lichtfunktion E21 - (Change value to Coming home oder leaving home Aktiv)
5 - Dimmwert EF21 - (Change value to 100)
6 - Dimming direction EF21 - (Change value to Maximize)
3 - Leuchte23SL HLC10
4 - Lichtfunktion C23 - (Change value to Coming home oder leaving home Aktiv)
5 - Dimmwert CD23 - (Change value to 100)
6 - Dimming direction CD23 - (Change value to Maximize)
7 - Leuchte24SL HRA65
8 - Lichtfunktion C24 - ( Change value to Coming home oder leaving home Aktiv)
9 - Dimmwert CD24 - (Change value to 100)
10 - Dimming direction CD24 - (Change value to Maximize)
[div][a name="sixteen"]



EMERGENCY

 Activation of hazard lights in case of multi-collision

* Applicable up to MY16 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Dynamic flashing modes
4 - Multi kollisions blinken - (Change value to On)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Aussenlicht_Blinker
4 - Multi kollisions blinken - (Change value to On)

 Flashing brake lights with sudden braking

* Applicable up to MY16 *
With this modification, during braking Suddenly the brake lights (all three) flash for an instant.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Assistance light functions
4 - Notbremsanzeige NBA - (Change value to Activated

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Aussenlicht_Heck
4 - Notbremsanzeige NBA - (Change value to Activated



https://dl.dropboxusercontent.com/s/unnzauhgdb6abzf/1flash.gif



 Activation of emergency lights with sudden braking

* Applicable up to MY16 *

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Dynamic flashing modes

4 - Emergency alert blinken - (Change value to Activated )



* Applicable from MY17 *

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Aussenlicht_Blinker

4 - Emergency alert blinken - (Change value to On)

Using both mods together. The brake lights will flash until the car stops and then the hazard lights will turn on automatically:



https://dl.dropboxusercontent.com/s/4jovkgmmuw02uwo/2flash.gif



[div][a name="seventeen"]



INTERIOR LIGHTS

 Light on the footrests

* Applicable to all models *

This modification is for those who do not have the light of the footrests and put it on their own will remain activated.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Leuchte30FR LC72

4 - Lichtfunktion E30 - (Change value to Interior light)



 Mode button always in Red

* Applicable up to MY16 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Long Coding(Bytes Mode)
3 - Byte 15 - (Activate Bit 7)
In this mode it will always be illuminated in red.



*Apllicable from MY17*



1 - Select Control Unit 09
2 - Select Adaptation
3 - Select Button in center console
4 - Select Zusatzcodierung Farhrprofiktaster hat keine LED
5 - Change to Led not installed

Interior light deactivated when opening the trunk
* Applicable up to MY16 *

https://www.youtube.com/watch?v=k3hgvUuh7FI



With this modification we will make sure that the interior lights of the passenger compartment do not turn on when opening the trunk.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Interior lighting

4 - Innenlicht bei offenem heckdeckel einschalten - (Change value to Inactive)



* Applicable from MY17 *

1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Interior Light 2nd generation
4 - Innenlicht bei offenem heckdeckel einschalten - (Change value to Inactive)

 Interior lights, progressive on and off
* Applicable until MY16 *
With this modification we will make the lights of the console, light control and door buttons turn on and off progressively
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Interior lighting

4 - KL58 einschalten mit rampe - (Change value to On )

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Suchbeleuchtung allgemein
4 - KL58 einschalten mit rampe - (Change value to On)

Door ambient light with flashing and colour change
* Applicable up to MY16 *
Only for facelift cars with the two colour door lights, it does not apply to the later model cars. The Mod will make both of your doors flash red and white when you use the indicators.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte16BLK SLB35BLK SL KC9
4 - Lichtfunktion C - Change value to Blinken links Dunkelphase
5 - Lichtfunktion D - Change value to Blinken rechts Dunkelphase
6 - Dimmwert CD - (Change value to 100)
7 - Dimming direction CD - (Change value to Maximize)
8 - Lichtfunktion E - Change value to Blinken links Hellphase
9 - Lichtfunktion F - Change value to Blinken rechts Hellphase
10 --- - Dimmwert EF - (Change value to 0)
11 - Dimming direction EF - (Change value to Minimize)
12 - Leuchte17TFL R BLK SRB3TFL R BLK SR KC3
13 - Lichtfunktion C - Change value to Blinken links Hellphase
14 - Lichtfunktion D - Change value to Blinken rechts Hellphase
15 - Dimmwert CD - (Change value to 100)
16 - Dimming direction CD - (Change value to Maximize)
17 - --- Lichtfunktion E - Change value to Blinken links Dunkelphase
18 - Lichtfunktion F - Change value to Blinken rechts Dunkelphase
19 - Dimmwert EF - (Change value to 0)
20 - Dimming direction EF - (Change value to Minimize)

Ambient door light with white flashing
* Applicable up to MY16 *
Only for vehicles with lights two-colour doors (Red and white). It is not applicable to RGB LEDs.
The lights on both doors flash white on and off.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte16BLK SLB35BLK SL KC9
4 - Lichtfunktion C - Change value to Blinken links Dunkelphase
5 - Lichtfunktion D - Change value to Blinken rechts Dunkelphase
6 - Dimmwert CD - (Change value to 0)
7 - Dimming direction CD - (Change value to Minimize)
8 - Lichtfunktion E - Change value to Blinken links Hellphase
9 - Lichtfunktion F - Change value to Blinken rechts Hellphase
10 - Dimmwert EF - (Change value to 0)
11 - Dimming direction EF - (Change value to Minimize)
12 - Leuchte17TFL R BLK SRB3TFL R BLK SR KC3
13 - Lichtfunktion C - Change value to Blinken links Hellphase
14 - Lichtfunktion D - Change value to Blinken rechts Hellphase
15 - Dimmwert CD - (Change value to 100)
16 - Dimming direction CD - (Change value to Maximize)
17 - Lichtfunktion E - Change value to Blinken links Dunkelphase
18 - Lichtfunktion F - Change value to Blinken rechts Dunkelphase
19 - Dimmwert EF - (Change value to 0)
20 - Dimming direction EF - (Change value to Minimize)

Ambient light of doors with red flashing
* Applicable up to MY16 *
Only for vehicles with lights two-colour doors (Red and white). It is not applicable to RGB LEDs.
The lights on both doors flash red on and off.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte16BLK SLB35BLK SL KC9
4 - Lichtfunktion C - Change value to Blinken links Dunkelphase
5 - Lichtfunktion D - Change value to Blinken rechts Dunkelphase
6 - Dimmwert CD - (Change value to 0)
7 - Dimming direction CD - (Change value to Minimize)
8 - Lichtfunktion E - Change value to Blinken links Hellphase
9 - Lichtfunktion F - Change value to Blinken rechts Hellphase
10 --- - Dimmwert EF - (Change value to 100)
11 - Dimming direction EF - (Change value to Maximize)
12 - Leuchte17TFL R BLK SRB3TFL R BLK SR KC3
13 - Lichtfunktion C - Change value to Blinken links Hellphase
14 - Lichtfunktion D - Change value to Blinken rechts Hellphase
15 - Dimmwert CD - (Change value to 0)
16 - Dimming direction CD - (Change value to Minimize)
17 - Lichtfunktion E - Change value to Blinken links Dunkelphase
18 - Lichtfunktion F - Change value to Blinken rechts Dunkelphase
19 - Dimmwert EF - (Change value to 0)
20 - Dimming direction EF - (Change value to Minimize)

Ambient light of doors turn red with the brake
* Applicable up to MY16 *
Only for vehicles with ambient lights on two-colour doors (Red and white). It is not applicable to RGB LEDs.
The lights on both doors turn red when braking. If you’r active colour is white, it changes to red when braking. If red it will increase the brightness.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte16BLK SLB35BLK SL KC9
4 - Lichtfunktion G - (Change value to Bremslicht)
6 - Dimmwert GH - (Change value to 127 )
7 - Dimming direction GH - (Change value to Maximize)
8 - Leuchte17TFL R BLK SRB3TFL R BLK SR KC3
9 - Lichtfunktion G - (Change value to Bremslicht)
10 - Dimmwert GH - (Change value to 0)
11 - Dimming direction GH - (Change value to Minimize)

Ambient door lights turn on white with the brake
* Applicable up to MY16 *
Only for vehicles with two-colour door ambient lights (Red and white). It is not applicable to RGB LEDs.
The lights on both doors turn white when braking. If you are wearing the white colour red, it changes to white when braking. If you wear white it will increase the brightness.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte16BLK SLB35BLK SL KC9
4 - Lichtfunktion G - Change value to Bremslicht
6 - Dimmwert GH - (Change value to 0)
7 - Dimming direction GH - (Change value to Minimize)
12 - Leuchte17TFL R BLK SRB3TFL R BLK SR KC3
4 - Lichtfunktion G - Change value to Bremslicht
6 - Dimmwert GH - (Change value to 127)
7 - Dimming direction GH - (Change value to Maximize)

White door ambient light with reversing
* Applicable up to MY16 *
Only for vehicles with two colour door ambient lights (Red and white). It is not applicable to RGB LEDs.
With this mod, taking the doors in red, when you put the reverse gear they will turn white.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte16BLK SLB35BLK SL KC9
4 - Lichtfunktion G 16 - (Change value to Rueckfahrlicht)
5 - Dimmwert GH 16 - (Change value a 0)
6 - Dimming direction GH 16 - (Change value to Minimize)
7 - Leuchte17TFL R BLK SRB3TFL R BLK SR KC3
8 - Lichtfunktion C 17 - (Change value to Rueckfahrlicht)
9 --- - Dimmwert CD 17 - (Change value to 127)
10 - Dimming direction CD 17 - (Change value to Maximize)

Red light in all driving modes
* Applicable up to MY16 *
Only for vehicles with ambient lights on doors two-colour (Red and white). It is not applicable to RGB LEDs.
With this modification, the door lights will always be red in all driving modes.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte17TFL R BLK SRB3TFL R BLK SR KC3
4 - Lichtfunktion A 17 - (Change value to Nicht Aktiv)
5 - Leuchte16BLK SLB35BLK SL KC9
6 - Lichtfunktion B 16 - (Change value to Ambient Light 3) Ambient

light lighting intensity of the doors
* Applicable up to MY16 *
Only for vehicles with ambient lights on two-colour doors (Red and white). It is not applicable to RGB LEDs.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte16BLK SLB35BLK SL KC9
4 - Dimmwert AB 16 - (Change value to 127)
5 - Leuchte17TFLR SRB3TFL R SR KC3
6 - Dimmwert AB 17 - (Change value to 127)

Gradual change of colour in ambient lights
* Applicable to all models *
When the ambient lights change colour, they do so gradually rather than suddenly. Applicable to all models, both those with two colours and those with RGB. You can change the time it takes for the colour to change.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - 2nd generation interior light
4 - Aufloesung Dimmzeit - (Change the value to the one you like the most, for example 0.30)
5 - Weicher Farbwechsel - (Change value to Active)

Changing the colours of the ambient lights (CASE 1)
* Applicable from MY17 *
With this mod we can change the default colours for the ones you want.
This mod is specific for units that only have the Ambientelicht Farbliste colour input with 10 colours, as it does not have the
Ambience_lightning_colour_list_lininput,no more colours can be added. Just change the ones we already have.
Before doing the mod, we check if we have this line Ambience_lightning_colour_list_lin.
If we don't have it, make this mod, if we do have it, make the mod you have just below it.

First of all we enter https://www.colourspire.com/ (For example) to write down the values ​​of the colours that we are going to want to change and we make a list with the desired colours.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Ambientelicht Farbliste or Ambient Light, Colour list
4 - Inside we will find the following in blocks of three numbered from 1 to 10:
- Rotwert Farbe 1: 0 (RED from the RGB)
- Gruenwert Farbe 1: 0 (GREEN from the RGB)
- Blauwert Farbe 1: 0 (BLUE from the RGB)
We are changing the values ​​that they bring from origin to the ones we have signed up for in our list and we will have them configured.
Restart the infotainment to read the parameters again.

Change ambient colours and add more colours
* Applicable from MY17 *
With this mod we can change the default colours for the ones you want, in addition to being able to add up to a total of 30 colours.
Before doing the mod, we check if we have this line Ambience_lightning_colour_list_lin.
If we have it, make this mod, if we don't have it, make the mod that you have just above it.
First of all we enter https://www.colourspire.com/ (For example) to write down the values ​​of the colours that we are going to want to change and we make a list with the desired colours.



1 - Module 09 - Electronic control unit - Code (31347)

2 – Adaptation

3 - Ambientelicht Farbliste or Ambient Light, Colour list
4 - Inside we will find the following in blocks of three, numbered from 1 to 10:
- Rotwert Farbe 1: 0 (RED from RGB)
- Gruenwert Farbe 1: 0 (GREEN from RGB)
- Blauwert Farbe 1: 0 (BLUE of the RGB)
We are changing the values ​​that they bring from origin for those that we have signed up in our list and we will have them configured.
5 - Ambience_lightning_colour_list_lin: We repeat the same process as in the previous step, putting exactly the same values.

Add colours
1 - Ambience_lightning_colour_list_lin_2:
2 - Inside we will find the following in blocks of three, numbered from 11 to 30:
- Rotwert Farbe 11: 0 (RED from RGB)
- Gruenwert Farbe 11: 0 (GREEN from RGB )
- Blauwert Farbe 11: 0 (BLUE of the RGB)
We are changing the values ​​that they bring from origin for those that we have signed up in our list and we will have them configured.
3 - Ambience_lightning_colour_list_2:: We repeat the same process as in the previous step, putting exactly the same values.
Restart the infotainment to read the parameters again.
[div][a name="eighteen"]





Exterior Lights

In general, already take into account when making the mods of the lights.
Before doing a mod you must understand how the channels are organized so that you do not get the one from God is Christ.
That is why you should read this post that I made some time ago so that you know how they work and how
the functions can be put without interfering with others. viewtopic.php? f = 8 & t = 116700 # p1876856 Once you read it and understand it, you shouldn't have any problems.

The Lichtfunktion channels that I put in the mods are those that I have seen fit based on the table that I have made.

In general, you can put any function on the first channel that is free (Nicht Aktiv), as long as you do not change the Dimmwert or the Dimming Direction of its pair of channels. (AB - CD - EF - GH)



Fog lights activated when cornering (Cornering function)

* Applicable to all models *
If your car has not activated the fog lamps to turn on when cornering, with this modification you can activate this function.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte12NL LB45
4 - Lichtfunktion B12 - (Change value to Abbiegelicht links)
5 - Dimmwert AB12 - (Change value to 100)
6 - Dimming direction AB12 - (Change value to Maximize)
7 - Leuchte13NL RB5
8 - Lichtfunktion B13 - (Change value to Abbiegelicht rechts)
9 - Dimmwert AB13 - (Change value to 100 )
10 - Dimming direction AB13 - (Change value to Maximize) Anti-fog

deactivated in curves (Cornering function)
* Applicable to all models *
With this modification you can deactivate the cornering function.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte12NL LB45 (Left)
4 - Lichtfunktion B12 - (Change value to Nicht aktiv)
5 - Leuchte13NL RB5 (Right)
6 - Lichtfunktion B13 - (Change value to Nicht aktiv)

Speed ​​of lights Corner or turn
* Applicable to all models *
With this modification you can change the speed at which you want the cornering to act. By default they come at 40 km / h.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Static cornering light
4 - Untere geschwindigkeitsschwelle - (Change value to the desired one - By default 0 Km / H)
5 - Obere Geschwindigkeitsschwelle - (Change value to 60 - By default 40 Km / H)

Angle of Lights Corner or turn
* Applicable to all models *
With this modification you can change the angle of turn at which you want them to act the cornering.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Static curve light
4 - Oberer Lenkradwinkel - (Change value to the desired one - By default 90º) Value at which
5 are activated - Unterer Lenkradwinkel - (Change value to the desired one - By default 30º) Value at which the

front fog lights are deactivated when reversing
* Applicable to all models *

 https://www.youtube.com/watch?v=NoqGZJyEfrA

With this mod, when you put the reverse gear, the front fog lights will turn on.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Static cornering light
4 - Bei rueckwaertsfahrt - (Change value on both sides)



https://dl.dropboxusercontent.com/s/x24vczzmd95g17r/4niebla.gif
,
Active front fog lights with high beams
* Applicable to all models *

https://www.youtube.com/watch?v=C751jodQUPY

With this modification, the main beams and the fog lights are turned on at the same time

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Leuchte12NL LB45

4 - Lichtfunktion C12 - (Change value to Fernlicht links)

5 - Dimmwert CD12 - (Change value to 100)
6 - Dimming direction CD12 - (Change value to Maximize)
7 - Leuchte13NL RB5
8 - Lichtfunktion C13 - (Change value to Fernlicht rechts)
9 - Dimmwert CD13 - (Change value to 100 )
10 - Dimming direction CD13 - (Change value to Maximize)



https://dl.dropboxusercontent.com/s/je8a9c6q6a1y4ix/2niebla.gif



Front fog lights together with flash



* Applicable to all models *

With this modification every time you press the flash on the lights of your car, they will turn on at the same time the front fog lights.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Leuchte12NL LB45

4 - Lichtfunktion D12 - (Change value to Lichthupe generell)

5 - Dimmwert CD12 - (Change value to 100)
6 - Dimming direction CD12 - (Change value to Maximize)
7 - Leuchte13NL RB5
8 - Lichtfunktion D13 - (Change value to Lichthupe general)
9 - Dimmwert CD13 - (Change value to 100 )
10 - Dimming direction CD13 - (Change value to Maximize)



https://dl.dropboxusercontent.com/s/nxnmcl8yr9ot6wc/3niebla.gif



Rear fog activated with trailer attached

 * Applicable to all models *

With this modification, when pulling an activated trailer, the fog light will turn on rear.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Leuchte28RFL LC11

4 - Lichtfunktion B28 - (Change value to Nebelschlusslicht wenn kein anhaenger gesteckt)


Keep the rear fog light on with the trunk open



 https://www.youtube.com/watch?v=5LObJ9CXl_g



* Applicable to all models *

With this modification we can make the rear fog light stay on when opening the trunk.

1 - Module 09 - Electronic control unit

2 – Adaptation

3 - Leuchte28RFL LC11

4 - Lichtansteuerung HD AB28 - (Change value to Always)



https://dl.dropboxusercontent.com/s/y9pg0ues9a8ps5q/1niebla.gif



Reverse gear in rear fog light also

* Applicable to all models *



https: / /www.youtube.com/watch?v=EF2c20Ljm5M

1 - Module 09 - Electronic control unit - Code (31347)

2 – Adaptation

3 - Leuchte28RFL LC11
4 - Lichtfunktion C28 - (Change to Rueckfahrlicht)
5 - Dimmwert CD28 - (Change value to 100)
6 - Dimming direction CD28 - (Change value to Maximize) Daylight



https://dl.dropboxusercontent.com/s/4lxgtq5b8k26gyj/1atras.jpg

 (DRL) off with the parking brake on



* Applicable up to MY16 *



 https://www.youtube.com/watch?v=cnymLlNzsaY



This modification is very interesting because it allows us to leave the daytime running lights (DRL) off while we have the hand brake on with and without ignition.

Very useful in low battery conditions.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Daytime running light

4 - Tagfahrlicht Dauerfahrlicht bei Handbremse abschalten - (Change value to On)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Aussenlicht_Front
4 - Tagfahrlicht Dauerfahrlicht bei Handbremse abschalten - (Change value to Activated) Daylights

 (DRL) off with selector of lights in position 0

* Applicable up to MY16 *
This modification is also very interesting because it allows you to leave the daytime lights off while the lights switch is in the zero position. It is compatible with the above.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Daytime running light
4 - Tagfahrlicht nur in Schalterstellung AUTO - (Change value to Activated)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Aussenlicht_Front
4 - Tagfahrlicht nur in Schalterstellung AUTO - (Change value to Activated)

Day lights (DRL) always on (Led Headlights)
* Applicable up to MY16 *
With this modification the DRLs work normally at their intensity, but when we put the low beams they remain on, lowering the intensity.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte2SL VLB10
4 - Lichtfunktion G2 - (Change value to Abblendlicht links)
5 - Dimmwert GH 2 - (Change value to 60 for example so that it does not illuminate too much)
6 - Dimming Direction GH 2 - (Change value to Maximize)
7 - Leuchte3SL VRB21
8 - Lichtfunktion G3 - (Change value to Abblendlicht rechts)
9 - Dimmwert GH 3 - (Change value to 60 for example so that it does not illuminate too much)
10 - Dimming Direction GH 3 - (Change value to Maximize)

Daylights (DRL) always on (Non-Led Headlights)
* Applicable up to MY16 *
With this modification the DRLs work normally at their intensity, but when we put the low beams they remain on by lowering the intensity.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte4TFL LB4
4 - Lichtfunktion G4 - (Change value to Abblendlicht links)
5 - Dimmwert GH 4 - (Change value to 60 for example so that it does not light too much)
6 - Dimming Direction GH 4 - (Change value to Maximize)
7 - Leuchte5 TFL RB32
8 - Lichtfunktion G4 - (Change value to Abblendlicht rechts)
9 - Dimmwert GH 4 - (Change value to 60 for example so that it does not illuminate too much)
10 - Dimming Direction GH 4 - (Change value to Maximize)

Daytime running lights (DRL) also in the front fog lights
* Applicable to all models *
With this modification They will turn on the fog lights along with the DRLs when they are turned on.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte12NL LB45
4 - Lichtfunktion E12 - (Change value to Tagfahrlicht)
5 - Dimmwert EF 12 - (Change value to 60 for example so that it does not illuminate too much)
6 - Dimming Direction EF 12 - (Change value to Maximize)
7 - Leuchte13NL RB5
8 - Lichtfunktion E13 - (Change value to Tagfahrlicht)
9 - Dimmwert EF 13 - (Change value to 60 for example so that it does not illuminate too much)
10 - Dimming Direction EF 13 - (Change value to Maximize)



https://dl.dropboxusercontent.com/s/nt2yxb2vj5wd3nj/1drl.gif



Daytime running lights day (DRL) in rear.

* Up to My16 *

With this modification when you have the DRLs on, the outer taillights will also light.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 – Daytime running light
4 - Tagfahrlicht dauerfahlicht aktiviert zusaetzlich standlicht - (Change value to On)



*My 17 onwards*

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation
3 - Aussenlicht_Front
4 - Tagfahrlicht Aktivierung durch BAP oder Bedienfolge moeglich -- ((Change Value to On)

Daytime running lights (DRL) also on external rear lights (Led lights)
* Applicable up to MY16 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte23SL HLC10
4 - Lichtfunktion D23 - (Change value to Tagfahrlicht)
5 - Dimmwert CD23 - (Change value to 100)
6 - Dimming direction CD 23 - (Change value to Maximize)
7 - Leuchte24SL HRA65
8 - Lichtfunktion D24 - (Change value to Tagfahrlicht)
9 - Dimmwert CD24 - (Change value to 100)
10 - Dimming direction CD24 - (Change value to Maximize)

Daytime running lights (DRL) also in external rear lights (No Led lights)
* Applicable up to MY16 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte20BR LA71
4 - Lichtfunktion G20 - (Change value to Tagfahrlicht)
5 - Dimmwert GH20 - (Change value to 100)
6 - Dimming direction GH 20 - (Change value to Maximize)
7 - Leuchte21BR RC8
8 - Lichtfunktion G21 - ( Change value to Tagfahrlicht)
9 - Dimmwert GH21 - (Change value to 100)
10 - Dimming direction GH21 - (Change value to Maximize)

Daytime running lights (DRL) also on internal and external taillights (Pilots Led)
* Applicable up to MY16 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte23SL HLC10
4 - Lichtfunktion D23 - (Change value to Tagfahrlicht)
5 - Dimmwert CD23 - (Change value to 100)
6 - Dimming direction CD 23 - (Change value to Maximize)
7 - Leuchte24SL HRA65
8 - Lichtfunktion D24 - (Change value to Tagfahrlicht)
9 - Dimmwert CD24 - (Change value to 100)
10 - Dimming direction CD24 - (Change value to Maximize)
11 - Leuchte26NSL LA72
12 - Lichtfunktion D26 - (Change value to Tagfahrlicht)
13 - Dimmwert CD26 - (Change value to 100)
14 - Dimming direction CD26 - (Change value to Maximize)
15 - Leuchte27NSL RC6
16 - Lichtfunktion D27 - (Change value to Tagfahrlicht)
17 - Dimmwert CD27 - (Change value to 100)
18 - Dimming direction CD27 - (Change value to Maximize)

Daylight (DRL ) also in internal and external rear lights (No Led lights)
* Applicable up to MY16 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte20BR LA71
4 - Lichtfunktion G20 - (Change value to Tagfahrlicht)
5 - Dimmwert GH20 - (Change value to 100)
6 - Dimming direction GH 20 - (Change value to Maximize)
7 - Leuchte21BR RC8
8 - Lichtfunktion G21 - (Change value to Tagfahrlicht)
9 - Dimmwert GH21 - (Change value to 100)
10 - Dimming direction GH21 - (Change value to Maximize)
11 - Leuchte23SL HLC10
12 - Lichtfunktion D23 - (Change value to Tagfahrlicht)
13 - Dimmwert CD23 - (Change value to 100)
14 - Dimming direction CD 23 - (Change value to Maximize)
15 - Leuchte24SL HRA65
16 - Lichtfunktion D24 - (Change value to Tagfahrlicht)
17 - Dimmwert CD24 - (Change value to 100 )
18 - Dimming direction CD24 - (Change value to Maximize)

Brake light also on the two taillights. Position 0. (Led lights )
* Applicable to all models *
With this modification the brake lights also turn on all the lights of the external and internal lights.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte23SL HLC10:
4 - Lichtfunktion E23 - (Change value to Bremslicht)
5 - Dimmwert EF23 - (Change value to 100)
6 - Dimming direction CD23 - (Change value to Maximize)
7 - Leuchte24SL HRA65
8 - Lichtfunktion E24 - (Change value to Bremslicht)
9 - Dimmwert EF24 - (Change value to 100)
10 - Dimming direction CD24 - (Change value to Maximize)
11 - Leuchte26NSL LA72
12 - Lichtfunktion E26 - (Change value to Bremslicht)
13 - Dimmwert EF26 - (Change value to 100)
14 - Dimming direction CD26 - (Change value to Maximize)
15 - Dimming direction CD24 - (Change value to Maximize)
16 - Leuchte27NSL RC6
17 - Lichtfunktion E27 - (Change value to Bremslicht)
18 - Dimmwert EF27 - (Change value to 100)
19 - Dimming direction CD27 - (Change value to Maximize)



https://dl.dropboxusercontent.com/s/lp0ahg3hh7v4zpt/1frenos.gif



Brake light also on the tailgate lights. Position 0. (Non-LED lamps )

* Applicable up to MY16 *



With this modification the brake lights also light up on the tailgate lights instead of only on the rear wings.

In the non-LED lights it is not necessary to activate the external ones because they come on with the brake light itself.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Leuchte23SL HLC10
4 - Lichtfunktion E23 - (Change value to Bremslicht)
5 - Dimmwert EF23 - (Change value to 100)
6 - Dimming direction CD23 - (Change value to Maximize)
7 - Leuchte24SL HRA65
8 - Lichtfunktion E24 - (Change value to Bremslicht)
9 - Dimmwert EF24 - (Change value to 100)
10 - Dimming direction CD24 - (Change value to Maximize)



https://dl.dropboxusercontent.com/s/lp0ahg3hh7v4zpt/1frenos.gif



Position / parking light on tailgate pilots too. (LED lights)

* Applicable to all models *

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Leuchte26NSL LA 72

4 - Lichtfunktion B26 - (Change value to Parklicht links)

5 - - Dimming direction AB26 - (Change value to Maximize)
6 - Dimmwert AB26 - (Change value to 30)
7 - Leuchte27NSL RC6
8 - Lichtfunktion B27 - (Change value to Parklicht rechts)
9 - Dimming direction AB27 - (Change value to Maximize )
10 - Dimmwert AB27 - (Change value to 30)

Position / parking light in tailgate lights too. (NO LED lights)
* Applicable up to MY16 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte23SL HLC10
4 - Lichtfunktion B23 - (Change value to Parklicht links)
5 - Dimming direction AB23 - (Change value to Maximize)
6 - Dimmwert AB23 - (Change value to 30)
7 - Leuchte24SL HRA65
8 - Lichtfunktion B24 - (Change value to Parklicht rechts)
9 - Dimming direction AB24 - (Change value to Maximize)
10 - Dimmwert AB24 - (Change value to 30)

Keep the tailgate light on when opening the trunk. (LED lights)
* Applicable to all models *
With this modification, when the boot is opened, the boot lights will remain on.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte26NSL LA72
4 - Lichtansteuerung HD AB26 - (Change value to Always)
5 - Leuchte27NSL RC6
6 - Lichtansteuerung HD AB27 - ( Change value to Always)



https://dl.dropboxusercontent.com/s/dv0wxzh1vxytssb/1manten.gif



Keep the tailgate light on when opening the boot. (Non-LED Pilots)

* Applicable up to MY16 *
With this modification when you open the trunk, the tailgate lights will remain on.
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte23SL HLC10
4 - Lichtansteuerung HD AB23 - (Change value to Always)
5 - Leuchte24SL HRA65
6 - Lichtansteuerung HD AB24 - ( Change value to Always)



https://dl.dropboxusercontent.com/s/dv0wxzh1vxytssb/1manten.gif



Burst with high and low beams at the same time (Led Headlights)

* Applicable to all models *

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Leuchte6ABL LC5

4 - Lichtfunktion E6 - (Change value to Lichthupe general)

5 - Dimmwert EF6 - (Change value to 127)

6 - Dimming Direction CD 6 - (Change value to Maximize)
7 - Leuchte7ABL RB1
8 - Lichtfunktion E7 - (Change value to Lichthupe general)
9 - Dimmwert EF7 - (Change value to 127)
10 - Dimming Direction CD7 - (Change value to Maximize )



https://dl.dropboxusercontent.com/s/ukduyn2nla5fklv/1largas.gif



Burst with long and short lights at the same time (Non-Led Headlights)

* Applicable up to MY16 *

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Leuchte6ABL LC5

4 - Lichtfunktion B6 - (Change value to Lichthupe generell)

5 - Dimmwert AB6 - (Change value to 100)

6 - Dimming Direction EF6 - (Change value to Maximize)

7 - Leuchte7ABL RB1

8 - Lichtfunktion B7 - (Change value to Lichthupe generell)

9 - Dimmwert AB7 - (Change value to 100)
10 - Dimming Direction EF7 - (Change value to Maximize)



https://dl.dropboxusercontent.com/s/fh3iv0ncvwe77qn/2largas.gif



American Parking in Sport mode

 * Applicable up to MY16 *



 https://www.youtube.com/watch?v=IbAhBFVgB9o

Front indicators

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Leuchte 0 BLK VL B36

4 - Lichtfunktion B0 - (Change to Ambientelicht 4)

5 - Leuchte1BLK VRB20

6 - Lichtfunktion B1 - (Change to Ambienteclicht 4)



Rear indicators

7 - Leuchte 18 BLK

8 - Lichtfunktion B0 - (Change to Ambientelicht 4)

9 - Leuchte19BLK

10 - Lichtfunktion B1 - (Change to Ambientelicht 4)



https://dl.dropboxusercontent.com/s/usfutz24874l9zd/5intras.gif

Reversing light comes on like fog on the selector
* Applicable to all models *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Leuchte29RFL LC11
4 - Lichtfunktion B29 - (Change value to Nebelschlusslicht wenn kein Anhaenger gesteckt)

Third brake light as confirmation of closing and opening also
* Applicable up to MY16 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Dynamic flashing modes
4 - ZV_Blinken_zu - - (Change value to On)
5 - ZV_Blinken_auf - (Change value to On)
6 - Leuchte22BR MA57
7 - Lichtfunktion B22 - (Change to Aktive Blinkfunktion hat ein auf 1 gesetztes zugeordnetes Bit in pa dynamisch blinken)



There is an app Third brake light lock/unlock

* Applicable from MY17 *
1 - Module 09 - Electronic control unit - Code (31347)
2 - Adaptation
3 - Aussenlicht_Blinkert
4 - ZV_Blinken_zu - (Change value to Activated)
5 - ZV_Blinken_auf - (Change value to Activated)
6 - Leuchte22BR MA57
7 - Lichtfunktion B22 - (Change to Aktive Blinkfunktion hat ein auf 1 gesetztes zugeordnetes Bit in pa dynamisch blinken)



https://dl.dropboxusercontent.com/s/5roe4ymvazyy5ng/1confirma.gif



External rear lights come on when the boot is opened (LED lights)

* Applicable to all models *

1 - Module 09 - Electronic control unit

2 - Adaptation

3 - Leuchte23SL HLC10
4 - Lichtfunktion F 23 - (Change to Heckdeckel offen)
5 - Dimmwert EF 23 - (Change to 127)
6 - Dimming Direction EF 23 - (Change to maximize)
7 - Leuchte24SL HRA65
8 - Lichtfunktion F 24 - (Change to Heckdeckel offen)
9 - Dimmwert EF 24 - (Change to 127)
10 - Dimming Direction EF24 - (Change to maximize)



https://dl.dropboxusercontent.com/s/ncv3r6cdpeach36/1porton.gif



External taillights They light up when the boot is opened (NO LEDs)

* Applicable up to MY16 *

1 - Module 09 - Electronic control unit

2 - Adaptation

3 - Leuchte20BR LA71

4 - Lichtfunktion F 20 - (Change to Heckdeckel offen)

5 - Dimmwert EF 20 - (Change to 120)

6 - Dimming Direction EF 20 - (Change to maximize)
7 - Leuchte21BR RC8
8 - Lichtfunktion F 21 - (Change to Heckdeckel offen)
9 - Dimmwert EF 21 - (Change to 100)
10 - Dimming Direction EF21 - (Change to maximize)



https://dl.dropboxusercontent.com/s/ncv3r6cdpeach36/1porton.gif



External taillights + third brake light come on when the trunk is opened (LED lights)

* Applicable to all models *

1 - Module 09 - Electronic control unit

2 - Adaptation

3 - Leuchte23SL HLC10

4 - Lichtfunktion F 23 - ( Change to Heckdeckel offen)

5 - Dimmwert EF 23 - (Change to 127)

6 - Dimming Direction EF 23 - (Change to maximize)

7 - Leuchte24SL HRA65

8 - Lichtfunktion F 24 - (Change to Heckdeckel offen)

9 - Dimmwert EF 24 - (Change to 127)
10 - Dimming Direction EF24 - (Change to maximize)
11 - Leuchte22BR MA57
12 - Lichtfunktion C22 - (Change value to Heckdeckel Offen)
13 - Dimmwert CD22 - (Change value to 100)



https://dl.dropboxusercontent.com/s/lc5xr5td9k1duv7/2porton.gif



External taillights + third brake light come on when the boot is opened (NO LED lights)

* Applicable up to MY16 *

1 - Module 09 - Electronic control unit

2 - Adaptation

3 - Leuchte20BR LA71

4 - Lichtfunktion F 20 - (Change a Heckdeckel offen)

5 - Dimmwert EF 20 - (Change to 127)

6 - Dimming Direction EF 20 - (Change to maximize)

7 - Leuchte21BR RC8

8 - Lichtfunktion F 21 - ( Change to Heckdeckel offen)

9 - Dimmwert EF 21 - (Change to 127)
10 - Dimming Direction EF21 - (Change to maximize)
11 - Leuchte22BR MA57
12 - Lichtfunktion C22 - (Change value to Heckdeckel Offen)
13 - Dimmwert CD22 - (Change value to 100)



https://dl.dropboxusercontent.com/s/lc5xr5td9k1duv7/2porton.gif



Third brake light comes on when the trunk is opened

* Applicable to all models *

With this modification the third brake light will come on when the trunk is opened.

1 - Module 09 - Electronic control unit - Code (31347)

2 - Adaptation

3 - Leuchte22BR MA57

4 - Lichtfunktion C22 - (Change value to Heckdeckel Offen)

5 - Dimmwert CD22 - (Change value to 100)



https://dl.dropboxusercontent.com/s/khkxipxo1f9re60/3porton.gif



External taillights + license plate light up when the boot is opened (LED lights)

* Applicable to all models *
1 - Module 09 - Electronic control unit
2 - Adaptation
3 - Leuchte23SL HLC10
4 - Lichtfunktion F 23 - (Change to Heckdeckel offen)
5 - Dimmwert EF 23 - (Change to 127)
6 - Dimming Direction EF 23 - (Change to maximize)
7 - Leuchte24SL HRA65
8 - Lichtfunktion F 24 - (Change to Heckdeckel offen)
9 - Dimmwert EF 24 - (Change to 127)
10 -Dimming Direction EF24 - (Change to maximize)
11 - Leuchte25KZL HA59
12 - Lichtfunktion C 25 - (Change to Heckdeckel offen)
13 - Dimmwert CD 25 - (Change to 127)
14 - Dimming Direction CD 25 - (Change to maximize)



https://dl.dropboxusercontent.com/s/r2i0x9khismilfz/4porton.gif



External taillights + license plate light up when opening the trunk (NO LED lights)
* Applicable up to MY16 *
1 - Module 09 - Electronic control unit
2 - Adaptation
3 - Leuchte20BR LA71
4 - Lichtfunktion F 20 - (Change to Heckdeckel offen)
5 - Dimmwert EF 20 - (Change to 127)
6 - Dimming Direction EF 20 - (Change to maximize)
7 - Leuchte21BR RC8
8 - Lichtfunktion F 21 - (Change to Heckdeckel offen)
9 - Dimmwert EF 21 - (Change to 127 )
10 - Dimming Direction EF21 - (Change to maximize)
11 - Leuchte25KZL HA59
12 - Lichtfunktion C 25 - (Change to Heckdeckel offen)
13 - Dimmwert CD 25 - (Change to 127 )
14 - Dimming Direction CD 25 - (Change to maximize)



https://dl.dropboxusercontent.com/s/r2i0x9khismilfz/4porton.gif


External taillights + license plate + third brake light come on when the trunk is opened (LED lights)
* Applicable to all models *
1 - Module 09 - Electronic control unit
2 - Adaptation
3 - Leuchte23SL HLC10
4 - Lichtfunktion F 23 - - (Change to Heckdeckel offen)
5 - Dimmwert EF 23 - (Change to 127)
6 - Dimming Direction EF 23 - (Change to maximize)
7 - Leuchte24SL HRA65
8 - Lichtfunktion F 24 - (Change to Heckdeckel offen)
9 - Dimmwert EF 24 - (Change to 127)
10 - Dimming Direction EF 24 - (Change to maximize)
11 - Leuchte25KZL HA59
12 - Lichtfunktion C 25 - (Change to Heckdeckel offen)
13 - Dimmwert CD 25 - (Change to 127)
14 - Dimming Direction CD 25 - (Change to maximize)
15 - Leuchte22BR MA57
16 - Lichtfunktion C 22 - (Change value to Heckdeckel Offen)
17 - Dimmwert CD 22 - (Change value a 100)



https://dl.dropboxusercontent.com/s/e6pv7906gtktxse/5porton.gif



External taillights + license plate + third brake light come on when the boot is opened (NO LED lights)

 * Applicable to all models *

1 - Module 09 - Electronic control unit

2 - Adaptation

3 - Leuchte20BR LA71

4 - Lichtfunktion F 20 - (Change to Heckdeckel offen)

5 - Dimmwert EF 20 - (Change to 127)

6 - Dimming Direction EF 20 - (Change to maximize)

7 - Leuchte21BR RC8

8 - Lichtfunktion F 21 - (Change to Heckdeckel offen)
9 - Dimmwert EF 21 - (Change to 127)
10 - Dimming Direction EF21 - (Change to maximize)
11 - Leuchte25KZL HA59
12 - Lichtfunktion C 25 - (Change to Heckdeckel offen)
13 - Dimmwert CD 25 - (Change to 127)
14 - Dimming Direction CD 25 - (Change to maximize)
15 - Leuchte22BR MA57
16 - Lichtfunktion C 22 - (Change value to Heckdeckel Offen)
17 - Dimmwert CD 22 - (Change value to 100)



https://dl.dropboxusercontent.com/s/e6pv7906gtktxse/5porton.gif



Rear indicators come on when the boot is opened

* Applicable to all models *

1 - Module 09 - Electronic control unit

2 - Adaptation

3 - Leuchte18BLK HLA60

4 -  Lichtfunktion E 18 - (Change to Heckdeckel offen)
5 - Dimmwert EF 18 - (Change to 127)
6 - Dimming Direction EF 18 - (Change to maximize)
7 - Leuchte19BLK HRC31
8 - Lichtfunktion E 19 - (Change to Heckdeckel offen )
9 - Dimmwert EF 19 - (Change to 127)
10 - Dimming Direction EF 19 - (Change to maximize)



https://dl.dropboxusercontent.com/s/jri3mhnokzuh4bo/6porton.gif



Rear indicators + license plate light when the trunk is opened

* Applicable to all models *

1 - Module 09 - Electronic control unit

2 - Adaptation

3 - Leuchte18BLK HLA60

4 - Lichtfunktion E 18 - (Change to Heckdeckel offen)

5 - Dimmwert EF 18 - (Change to 127)

6 - Dimming Direction EF 18 - (Change to maximize)

7 - Leuchte19BLK HRC31
8 - Lichtfunktion E 19 - (Change to Heckdeckel offen)
9 - Dimmwert EF 19 - (Change to 127)
10 - Dimming Direction EF 19 - (Change to maximize)
11 - Leuchte25KZL HA59
12 - Lichtfunktion C 25 - (Change to Heckdeckel offen)
13 - Dimmwert CD 25 - (Change to 127)
14 - Dimming Direction CD 25 - (Change to maximize)



https://dl.dropboxusercontent.com/s/dhw5ws7i6z9hpdd/7porton.gif



Rear indicators + position + license plate external lights come on when the boot is opened (LED lights)

* Applicable up to MY16 *

1 - Module 09 - Electronic control unit

2 - Adaptation

3 - Leuchte18BLK HLA60

4 - Lichtfunktion E 18 - (Change to Heckdeckel offen )

5 - Dimmwert EF 18 - (Change to 127)
6 - Dimming Direction EF 18 - (Change to maximize)
7 - Leuchte19BLK HRC31
8 - Lichtfunktion E 19 - (Change to Heckdeckel offen)
9 - Dimmwert EF 19 - (Change to 127 )
10 - Dimming Direction EF 19 - (Change to maximize)
11 - Leuchte23SL HLC10
12 - Lichtfunktion F 23 - (Change to Heckdeckel offen)
13 - Dimmwert EF 23 - (Change to 127)
14 - Dimming Direction EF 23 - (Change to maximize)
15 - Leuchte24SL HRA65
16 - Lichtfunktion F 24 - (Change to Heckdeckel offen)
17 - Dimmwert EF 24 - (Change a 127)
18 - Dimming Direction EF 24 - (Change to maximize)
19 - Leuchte25KZL HA59
20 - Lichtfunktion C 25 - (Change to Heckdeckel offen)
21 - Dimmwert CD 25 - (Change to 127)
22 - Dimming Direction CD 25 - (Change to maximize)



https://dl.dropboxusercontent.com/s/zpnk69vf3iynbcg/8porton.gif



Rear indicators + external position lights + license plate light up when the trunk is opened (LEDs NOT LED)

* Applicable up to MY16 *

1 - Module 09 - Electronic control unit

2 - Adaptation

3 - Leuchte18BLK HLA60

4 - Lichtfunktion E 18 - (Change to Heckdeckel offen)

5 - Dimmwert EF 18 - (Change to 127)

6 - Dimming Direction EF 18 - (Change to maximize)

7 - Leuchte19BLK HRC31

8 - Lichtfunktion E 19 - (Change to Heckdeckel offen)

9 - Dimmwert EF 19 - (Change to 127 )

10 - Dimming Direction EF 19 - (Change to maximize)

11 - Leuchte20BR LA71
12 - Lichtfunktion F 20 - (Change to Heckdeckel offen)
13 - Dimmwert EF 20 - (Change to 127)
14 - Dimming Direction EF 20 - (Change to maximize)
15 - Leuchte21BR RC8
16 - Lichtfunktion F 21 - (Change to Heckdeckel offen)
17 - Dimmwert EF 21 - (Change to 127)
18 - Dimming Direction EF21 - (Change to maximize)
19 - Leuchte25KZL HA59
20 - Lichtfunktion C 25 - (Change to Heckdeckel offen)
21 - Dimmwert CD 25 - (Change to 127)
22 - Dimming Direction CD 25 - (Change to maximize)



https://dl.dropboxusercontent.com/s/zpnk69vf3iynbcg/8porton.gif



Deactivate headlight washer activation

* Applicable to all models *

1 - Module 09 - Electronic control unit

2 - Long Coding(Text Mode)
3 - Scheinwerferreinigung - (Change value to Not mounted)

Extend headlight washer activation interval

* Applicable up to MY16 *
1 - Module 09 - Electronic control unit
2 - Adaptation
3 - Windshield wiper
4 - Anzahl betaetigungen frontwaschanlage pro SRA aktievierung - (By default 5. Change to the desired one – the higher the number the longer the interval)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit
2 - Adaptation
3 - Scheinwerferreinigung
4 - Anzahl betaetigungen frontwaschanlage pro SRA aktievierung - (By default 5. Change to the desired one – the higher the number the longer the interval)

Headlight washer activation delay

* Applicable up to MY16 *
1 - Module 09 - Electronic control unit
2 - Adaptation
3 - Windshield wiper
4 - SRA verzoegerungszeit - (By default 0 ms. Change to 1500 for example)

* Applicable from MY17 *
1 - Module 09 - Electronic control unit
2 - Adaptation
3 - Scheinwerferreinigung
4 - SRA verzoegerungszeit - (By default 0 ms. Change to 1500 for example)

American Parking at Sport mode

All models
Front indicators
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Leuchte 0 BLK VL B36
4 - Lichtfunktion D0 - (Change to Ambientelicht 4)
5 - Dimmwert CD0 - (Change value to 30)
6 - Lichfunktion E0 - (Change value to Blinken links Dunkelphase)
7 - Dimming Direction EF0 - (Change value to Minimize)
8 - Leuchte1BLK VRB20
9 - Lichtfunktion D1 - (Change value to Ambienteclicht 4)
10 - Dimmwert CD1 - (Change value to 30)
11 - Lichtfunktion E1 - (Change value to Blinken rechts Dunkelphase)
12 - Dimming Direction EF1 - (Change value to Minimize)

Rear indicators
1 - Leuchte 18 BLK
2 - Lichtfunktion D0 - (Change to Ambientelicht 4)
3 - Dimmwert CD0 - (Change value to 30)
4 - Lichfunktion E0 - (Change value to Blinken links Dunkelphase)
5 - Dimming Direction EF0 - (Change value to Minimize)
6 - Leuchte19BLK
7 - Lichtfunktion D1 - (Change to Ambientelicht 4)
8 - Dimmwert CD1 - (Change to 30)
9 - Lichfunktion E1 - (Change value to Blinken links Dunkelphase)
10 - Dimming Direction EF1 - (Change value to Minimize)



 https://www.youtube.com/watch? v = IbAhBFVgB9o

Conserve intensity of the DRL when putting on the indicators (Led Pilots)

All models
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Leuchte2SL VLB10
4 - Lichtfunktion F2 - (Change value to Nicht aktiv) if you already had them in Blinken links (Beide phasen)
5 - Leuchte3SL VRB21
6 - Lichtfunktion F3 - (Change value to Nicht aktiv) if you already had them in Blinken rechts (Beide phasen)





https://www.youtube.com/watch?v=din70dM2Sd8



Turn signals lower the intensity of DRL and external rear lights (Led Pilots)

All models

1 - Module 09 - Electronic switchboard. Code (31347)

2 – Adaptation

3 - Leuchte23SL HLC10
4 - Dimmwert AB23 - (Change value to 126)
5 - Dimmwert CD23 - (Change value to 126)
6 - Lichtfunktion E23 - (Change value to Blinken Links aktiv (Beide Phasen); Auf- und Abdimmend mit p_t_blinken_rampe)
7 - Dimmwert EF23 - (Change value to 35)
8 - Dimming direction EF23 - (Change value to Minimize)
9 - Leuchte24SL HRA65
10 - Dimmwert AB24 - (Change value to 126)
11 - Dimmwert CD24 - (Change value to 126)
12 - Lichtfunktion E24 - (Change value to Blinken Links aktiv (Beide Phasen); Auf- und Abdimmend mit p_t_blinken_rampe)
13 - Dimmwert EF24 - (Change value to 35)
14 - Dimming direction EF24 - (Change value to Minimize)
15 - Leuchte2SL VLB10
16 - Lichtfunktion E2 - (Change value to Blinken Links aktiv (Beide Phasen); Auf- und Abdimmend mit p_t_blinken_rampe)
17 - Dimmwert EF2 - (Change value to 35)
18 - Dimming direction EF2 - (Change value to Minimize)
19 - Leuchte3SL VLB21
20 - Lichtfunktion E3 - (Change value to Blinken Links aktiv (Beide Phasen); Auf- und Abdimmend mit p_t_blinken_rampe)
21 - Dimmwert EF3 - (Change value to 35)
22 - Dimming direction EF3 - (Change value to Minimize)

Indicators lower the intensity of DRL and external rear lights (No Led Pilots)

All models
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Leuchte20BR LA71
4 - Dimmwert CD20 - (Change value to 100)
5 - Dimmwert EF20 - (Change value to 100)
6 - Lichtfunktion G20 - (Change value to Blinken Links aktiv (Beide Phasen); Auf- und Abdimmend mit p_t_blinken_rampe)
7 - Dimmwert GH20 - (Change value to 35)
8 - Dimming direction GH20 - (Change value to Minimize)
9 - Leuchte21BR RC8
10 - Dimmwert CD21 - (Change value to 100)
11 - Dimmwert EF21 - (Change value to 100)
12 - Lichtfunktion G21 - (Change value to Blinken Links aktiv (Beide Phasen); Auf- und Abdimmend mit p_t_blinken_rampe)
13 - Dimmwert GH21 - (Change value to 35)
14 - Dimming direction GH21 - (Change value to Minimize)
15 - Leuchte4TFL LB4
16 - Lichtfunktion E4 - (Change value to Blinken Links aktiv (Beide Phasen); Auf- und Abdimmend mit p_t_blinken_rampe)
17 - Dimmwert EF4 - (Change value to 35)
18 - Dimming direction EF4 - (Change value to Minimize)
19 - Leuchte5TFL RB32
20 - Lichtfunktion E5 - (Change value to Blinken Links aktiv (Beide Phasen); Auf- und Abdimmend mit p_t_blinken_rampe)
21 - Dimmwert EF5 - (Change value to 35)
22 - Dimming direction EF5 - (Change value a Minimize)

Indicators with the Cornering

All models
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Static cornering light
4 - Vorschrift - (Change value to FMVSS 517 108. Default ECE R119)

Comfort indicators - Change number of flashes

All models
Very interesting for those of us who believe that the indicators in comfort mode fall short with 3 flashes. The maximum value is 5 blinks.
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Indicator control Up to MY16 or enter Aussenlicht_Blinker From MY17 and later
4 - Komfortblinken blinkzyklen - (Change value to the desired one - Maximum 5)
5 - Restore factory settings of the lights on the screen of the car



https://www.youtube.com/watch?v=4-P_ozZduLo



Emergency flashers also on third brake light

All models
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Leuchte22BR MA57
4 - Lichtfunktion E22 - (Change value to Blinken links hellphase)
5 - Lichtfunktion F22-- (Change value to Blinken rechts hellphase)
6 - Dimmwert EF22 - (Change value to 100 )
7 - Dimming diection EF22 - (Change Maximize value)



 https://www.youtube.com/watch?v=7R9FJe5UVro



USA type front indicators

All models

1 - Module 09 - Electronic control unit. Code (31347)

2 - Adaptation

3 - Leuchte 0 BLK VL B36

4 - Lichtfunktion C0 - (Change value to Standlicht algemeine)

5 - Dimmwert CD0 - (Change value to 30)
6 - Dimming direction CD0 - (Change value to (Maximize)
7 - Lichtfunktion E0 - (Change value to Blinken dunkelphase)
8 - Lichtfunktion EF0 - (Change value to 0)
9 - Dimming diection EF0 - (Change value to Miniimize)
10 - Leuchte1BLK VRB20
11 - Lichtfunktion C1-- (Change value to Standlicht algemeine)
12 - Dimmwert CD1 - (Change value to 30)
13 - Dimming direction CD1 - (Change value to Maximize)
14 - Lichtfunktion E1 - (Change value to Blinken dunkelphase)
15 - Lichtfunktion EF1 - (Change value to 0)
16 - Dimming diection EF1 - (Change value to Miniimize) Push-

pull indicators with front DRLs (Led headlights)

All models
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Leuchte2SL VLB10
4 - Lichtfunktion F2 - (Change value to Blinken links Dunkelphase)
5 - Dimmwert EF2 - (Change value to 0)
6 - Dimming Direction EF2 - (Change value to Minimize)
7 - Leuchte3SL VRB21
8 - Lichtfunktion F3 --- (Change value to Blinken rechts Dunkelphase)
9 - Dimmwert EF3 - (Change value to 0)
10 - Dimming Direction EF3 - (Change value to Minimize)



 https: // www. youtube.com/watch?v=xtG8DqhgdmY



Push-pull turn signals with front DRLs (Non-Led Headlights)

All models

1 - Module 09 - Electronic control unit. Code (31347)

2 - Adaptation

3 - Leuchte4TFL LB4
4 - Lichtfunktion F4 - (Change value to Blinken links Dunkelphase)
5 - Dimmwert EF4 - (Change value to 0)
6 - Dimming Direction EF4 - (Change value to Minimize)
7 - Leuchte5TFL RB32
8 - Lichtfunktion F5 --- (Change value to Blinken rechts Dunkelphase)
9 - Dimmwert EF5 - (Change value to 0)
10 - Dimming Direction EF5 - (Change value to Minimize) Turn signal

indicators with dissipated DRL (Led Pilots)

All models
1 - Module 09 - Electronic switchboard. Code (31347)
2 - Adaptation
3 - Leuchte2SL VLB10
4 - Lichtfunktion E2 - (Change value to Blinken links aktiv (Beiden phase))
5 - Dimmwert EF2 - (Change value to 30)
6 - Dimming Direction EF2 - (Change value to Minimize)
7 - Leuchte3SL VRB21
8 - Lichtfunktion E3 - (Change value to Blinken links aktiv (Beiden phase))
9 - Dimmwert EF3 - (Change value to 30)
10 - Dimming Direction EF3 - (Change value to Minimize)



https://www.youtube.com/watch?v=zRXrHEqmwyE



Push-pull turn signals with dissipated DRL (Non-Led Pilots)

All models

1 - Module 09 - Electronic control unit. Code (31347)

2 - Adaptation

3 - Leuchte4TFL LB4

4 - Lichtfunktion E4 - (Change value to Blinken links aktiv (Beiden phase))

5 - Dimmwert EF4 - (Change value to 30)

6 - Dimming Direction EF4 - (Change value to Minimize)

7 - Leuchte5TFL RB32
8 - Lichtfunktion E5 - (Change value to Blinken links aktiv (Beiden phase))
9 - Dimmwert EF5 - (Change value to 30)
10 - Dimming Direction EF5 - (Change value to Minimize)



Turn signals in push-pull with external position pilots (LED lights)

All models
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Leuchte23SL HLC10
4 - Lichtfunktion F23 - (Change value to Blinken links dunkelphase)
5 - Dimmwert EF23 - (Change value to 0)
6 - Dimming Direction EF23 - (Change value to Minimize)
7 - Leuchte24SL HRA65
8 - Lichtfunktion F24 - (Change value to Blinken rechts dunkelphase)
9 - Dimmwert EF24 - (Change value to 0)
10 - Dimming Direction EF24 - (Change value to Minimize)



https://www.youtube.com/watch?v=DEDrzjcV1WM



Push-pull turn signals with external position lights (Non-LED lights)

All models

1 - Module 09 - Electronic control unit . Code (31347)

2 - Adaptation

3 - Leuchte20BR LA71

4 - Lichtfunktion F20 - (Change value to Blinken links dunkelphase)

5 - Dimmwert EF20 - (Change value to 0)

6 - Dimming Direction EF20 - (Change value to Minimize)

7 - Leuchte21BR RC8

8 - Lichtfunktion F21 - (Change value to Blinken rechts dunkelphase)

9 - Dimmwert EF21 - (Change value to 0)

10 - Dimming Direction EF21 - (Change value to Minimize)


Indicators on footrest lights

All models
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Leuchte30FR LC72
4 - Dimmwert CD30 - (Change value to 100)
5 - Lichtfunktion C30 - (Change value to Blinken Rechts Hellphase)
6 - Lichtfunktion D30 - (Change value to Blinken Links Hellphase )

Fog lights also

All models
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Leuchte12NL LB45
4 - Lichtfunktion G12 - (Change value to Blinken links hellphase)
5 - Dimmwert GH12 - (Change value to 100)
6 - Dimming direction GH12 - (Change value to Maximize)
7 - Leuchte13NL RB5
8 - Lichtfunktion G13 - (Change value to Blinken rechts hellphase)
9 - Dimmwert GH13 - (Change value to 100)
10 - Dimming direction GH13 - (Change value to Maximize)



 https://www.youtube .com / watch? v = eFZqC6cWjFg



Simultaneous turn signals with daylight (DRL) (Led Headlights)

All models

1 - Module 09 - Electronic control unit. Code (31347)

2 - Adaptation

3 - Leuchte2SL VLB10

4 - Lichtfunktion G2 - (Change value to Blinken links Dunkphase)

5 - Dimmwert GH2 - (Change value to 0)

6 - Dimming direction GH2 - (Change value to Minimize)

7 - Leuchte3SL VRB21

8 - Lichtfunktion G3 - (Change value to Blinken rechts Dunkphase)
9 - Dimmwert GH3 - (Change value to 0)
10 - Dimming direction GH3 - (Change value to Minimize)



 https://www.youtube.com/watch?v=KaSMDjznN8w

Simultaneous indicators with daylight (DRL) (Headlights No Led)

All models

1 - Module 09 - Electronic control unit. Code (31347)

2 - Adaptation

3 - Leuchte4TFL LB4

4 - Lichtfunktion G4 - (Change value to Blinken links Dunkphase)

5 - Dimmwert GH4 - (Change value to 0)

6 - Dimming direction GH4 - (Change value to Minimize)

7 - Leuchte5TFL RB32

8 - Lichtfunktion G5 - (Change value to Blinken links Dunkphase)

9 - Dimmwert GH5 - (Change value to 0)

10 - Dimming direction GH5 - (Change value to Minimize)


Rear turn signals with the two rear lights (Led Pilots)

All models
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Leuchte23SL HLC10
4 - Lichtfunktion F23 - (Change value to Blinken links Dunkelphase)
5 - Dimmwert EF23 - (Change value to 100)
6 - Dimming diection EF23 - (Change value to Maximize)
7 - Lichtfunktion G23 - (Change value to Blinken links Hellphase)
8 - Dimmwert GH23 - (Change value to 0)
9 - Dimming diection EF23 - (Change value to Minimize)
10 - Leuchte24SL HRA65
11 - Lichtfunktion F24 - ( Change value to Blinken rechts Dunkelphase)
12 - Dimmwert EF24 - (Change value to 100)
13 - Dimming diection EF24 - (Change value to Maximize)
14 - Lichtfunktion G24 - (Change value to Blinken rechts Hellphase)
15 - Dimmwert GH24 - (Change value to 0)
16 - Dimming diection EF24 - (Change value to Minimize)
17- Leuchte26NSL LA 72
18 - Lichtfunktion F26 - (Change value to Blinken links Dunkelphase)
19 - Dimmwert EF26 - (Change value to 100)
20 - Dimming diection EF26 - (Change value to Maximize)
21 - Lichtfunktion G26 - (Change value to Blinken links Hellphase)
22 - Dimmwert GH26 - (Change value to 0)
23 - Dimming diection EF26 - (Change value to Minimize)
24- Leuchte27NSL RC6
25 - Lichtfunktion F27 - (Change value to Blinken rechts Dunkelphase)
26 - Dimmwert EF27 - (Change value to 100)
27 - Dimming diection EF27 - (Change value to Maximize)
28 - Lichtfunktion G27 - (Change value to Blinken rechts Hellphase)
29 - Dimmwert GH27 - (Change value to 0 )
30 - Dimming diection EF27 - (Change value to Minimize)



 https://www.youtube.com/watch?v=knYtWUCtN_s



Push-pull rear turn signals with the two rear lights (Non-Led lights)

All models

1 - Module 09 - Electronic switchboard. Code (31347)

2 - Adaptation

3 - Leuchte23SL HLC10

4 - Lichtfunktion E23 - (Change value to Blinken links Dunkelphase)

5 - Dimmwert EF23 - (Change value to 100)

6 - Dimming diection EF23 - (Change value to Maximize)
7 - Lichtfunktion G23 - (Change value to Blinken links Hellphase)
8 - Dimmwert GH23 - (Change value to 0)
9 - Dimming diection EF23 - (Change value to Minimize)
10 - Leuchte24SL HRA65
11 - Lichtfunktion E24 - ( Change value to Blinken rechts Dunkelphase)
12 - Dimmwert EF24 - (Change value to 100)
13 - Dimming diection EF24 - (Change value to Maximize)
14 - Lichtfunktion G24 - (Change value to Blinken rechts Hellphase)
15 - Dimmwert GH24 - (Change value to 0)
16 - Dimming diection EF24 - (Change value to Minimize)
17- Leuchte20BR LA71
18 - Lichtfunktion E20 - (Change value to Blinken links Dunkelphase)
19 - Dimmwert EF20 - (Change value to 100 )
20 - Dimming diection EF20 - (Change value to Maximize)
21 - Lichtfunktion G20 - (Change value to Blinken links Hellphase)
22 - Dimmwert GH20 - (Change value to 0)
23 - Dimming diection EF20 - (Change value to Minimize)
24- Leuchte21BR RC8
25 - Lichtfunktion E21 - (Change value to Blinken rechts Dunkelphase)
26 - Dimmwert EF21 - (Change value to 100)
27 - Dimming diection EF21 - (Change value to Maximize)
28 - Lichtfunktion G21 - - (Change value to Blinken rechts Hellphase)
29 - Dimmwert GH21 - (Change value to 0)
30 - Dimming diection EF21 - (Change value to Minimize)

USA type rear indicators (Indicators only in position lights) (Led lights )

 All models
1 - Module 09 - Electronic control unit. Code (31347)
2 - Adaptation
3 - Leuchte23SL HLC10
4 - Lichtfunktion E23 - (Change value to Blinken links Hellphase)
5 - Dimmwert EF23 - (Change value to 100)
6 - Dimming diection EF23 - (Change value to Maximize)
7 - Lichtfunktion G23 - (Change value to Blinken links Dunkelphase)
8 - Dimmwert GH23 - (Change value to 0)
9 - Dimming diection EF23 - (Change value to Miniimize)
10 - Leuchte24SL HRA65
11 - Lichtfunktion E24 - ( Change value to Blinken rechts Hellphase)
12 - Dimmwert EF24 - (Change value to 100)
13 - Dimming diection EF24 - (Change value to Maximize)
14 - Lichtfunktion G24 - (Change value to Blinken rechts Dunkelphase)
15 - Dimmwert GH24 - (Change value to 0)
16 - Dimming diection EF24 - (Change value to Miniimize)
17- Leuchte26NSL LA 72
18 - Lichtfunktion E26 - (Change value to Blinken links Hellphase)
19 - Dimmwert EF26 - (Change value to 100)
20 - Dimming diection EF26 - (Change value to Maximize)
21 - Lichtfunktion G26 - (Change value to Blinken links Dunkelphase)
22 - Dimmwert GH26 - (Change value to 0)
23 - Dimming diection EF26 - (Change value to Miniimize)
24- Leuchte27NSL RC6
25 - Lichtfunktion E27 - (Change value to Blinken rechts Hellphase)
26 - Dimmwert EF27 - (Change value to 100)
27 - Dimming diection EF27 - (Change value to Maximize )
28 - Lichtfunktion G27 - (Change value to Blinken rechts Dunkelphase)
29 - Dimmwert GH27 - (Change value to 0)
30 - Dimming diection EF27 - (Change value to Miniimize)
31 - Leuchte18BLK HLA60
32 - Lichtfunktion A18 - ( Change value to Not Active)
33 - Lichtfunktion C18 - (Change value to Not Active)
34 - Leuchte19BLK HRC31
35 - Lichtfunktion A19 - (Change value to Not Active)
36 - Lichtfunktion C19 - (Change value to Not Active)

 https : //www.youtube.com/watch? v = sF3M9uQY5Co

USA type rear indicators (Indicators only in position lights) (Non-Led lights)

All models

1 - Module 09 - Electronic control unit. Code (31347)

2 - Adaptation
3 - Leuchte20BR LA71
4 - Lichtfunktion F20 - (Change value to Blinken links Hellphase)
5 - Dimmwert EF20 - (Change value to 100)
6 - Dimming diection EF20 - (Change value to Maximize)
7 - Lichtfunktion G20 - ( Change value to Blinken links Dunkelphase)
8 - Dimmwert GH20 - (Change value to 0)
9 - Dimming diection EF20 - (Change value to Miniimize)
10 - Leuchte21BR RC8
11 - Lichtfunktion F21 - (Change value to Blinken rechts Hellphase)
12 - Dimmwert EF21 - (Change value to 100)
13 - Dimming diection EF21 - (Change value to Maximize)
14 - Lichtfunktion G21 - (Change value to Blinken rechts Dunkelphase)
15 - Dimmwert GH21 - (Change value to 0 )
16 - Dimming diection EF21 - (Change value to Miniimize)
17- Leuchte23SL HLC10
18 - Lichtfunktion F23 - (Change value to Blinken links Hellphase)
19 - Dimmwert EF23 - (Change value to 100)
20 - Dimming diection EF23 - (Change value to Maximize)
21 - Lichtfunktion G23 - (Change value to Blinken links Dunkelphase)
22 - Dimmwert GH23 - (Change value to 0)
23 - Dimming diection EF23 - (Change value to Miniimize)
24- Leuchte24SL HRA65
25 - Lichtfunktion F24 - (Change value to Blinken rechts Hellphase)
26 - Dimmwert EF24 - (Change value to 100)
27 - Dimming diection EF24 - (Change value to Maximize)
28 - Lichtfunktion G24 - (Change value to Blinken rechts Dunkelphase)
29 - Dimmwert GH24 - (Change value to 0)
30 - Dimming diection EF24 - (Change value to Miniimize)
31 - Leuchte18BLK HLA60
32 - Lichtfunktion A18 - (Change value to Not Active)
33 - Lichtfunktion C18 - (Change value to Not Active)
34 - Leuchte19BLK HRC31
35 - Lichtfunktion A19 - (Change value to Not Active)
36 - Lichtfunktion C19 - (Change value to Not Active)

Deactivate turn signals of the mirrors

All models
1 - Module 42- Door electronics of the driver.
2 - Coding, (Text mode)
3 - Turn signal repeater - (Change value to Not active)
4 - Module 52- Passenger door electronics
5 - Coding, (Text mode)
6 - Turn signal repeater - (Change value to Not active)
[div][a name="nineteen"]



RETROFITS - REAR MOUNTING

Install light sensor. Thanks to POL All models
For this retrofit you will have to follow the steps described in the corresponding DIY.

 http://www.clubseatleon.net/viewtopic.php?f=40&t=108398

Once the corresponding switch and sensor with reference 5Q0 955 547 have been installed, the programming is as follows:

1 - Module 09

2 - Coding (Byte mode )

3 - Byte 6 - (Activate Bit 2)

4 - Byte 7 - (Activate Bits 5 and 7)

Install OEM rear camera All models

Necessary elements: OEM NTSC camera , connectors for the Quadlock.

Install the camera by connecting the original ceiling cables to the new ceiling light cables.
Power the chamber directly from the lighter. (Consult brico)
Connect the signal cables to the Quadlock (Blue Connector) Where PIN 6 is positive and PIN 12 is the video ground.

1 - Module 5F
2 - Coding (Byte mode)
3 - Byte 19 - (Activate Bit 4)
It can also be done in text mode in Byte 19 Rear View Low by setting it on.

--- A Very big thanks to Miceor and all the team at clubseatleon.net for this list ---

The purpose of my post is to give English readers easy access to the best list of mods in the SEAT Cumunity
